OverDeck® 20
Low-Profile System
OverDeck® 20
OverDeck® 20 is a low‑profile underfloor heating (UFH) system engineered for retrofit projects where floor build‑up must be kept to an absolute minimum. At just 20mm thick, the pre‑grooved XPS insulation panels with aluminium foil facing accommodate 16mm pipe and drive heat efficiently upwards through the floor structure to achieve high outputs without wet trades.
Suitable for suspended and solid subfloors (where a structural, level, and firm base is available), OverDeck® 20 installs rapidly across the entire floor area. Battens can be added locally for extra support at door thresholds and perimeters. The boards are available as Universal and Highway variants to simplify routing and speed coverage on site.
For floating timber floors (≥ 15mm), the finish can be laid directly on the panels; for tiles, carpet or LVT, use an intermediate screed‑replacement board for optimal load‑spread and performance. Where tiling directly over a 20mm low‑profile system is preferred, specify AmbiDeck® 20 Pro.
Why Choose OverDeck® 20?
- High Output, Low Build‑Up: Up to 98 W/m² at 45°C MWT and 0 tog covering – within a 20mm system thickness.
- Aluminium Foil Layer: Maximises upward heat transfer and promotes fast, even heat distribution.
- XPS Core, High Strength: Lightweight 20mm boards with high compression strength (≈ 400 kPa) for durable, long‑term support.
- Versatile Subfloors: Use on suspended or solid floors where the subfloor is structural, level and firm.
- Faster Installation: Pre‑grooved panels and Universal/Highway options speed layout and simplify pipe routing.

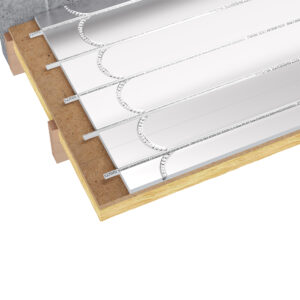

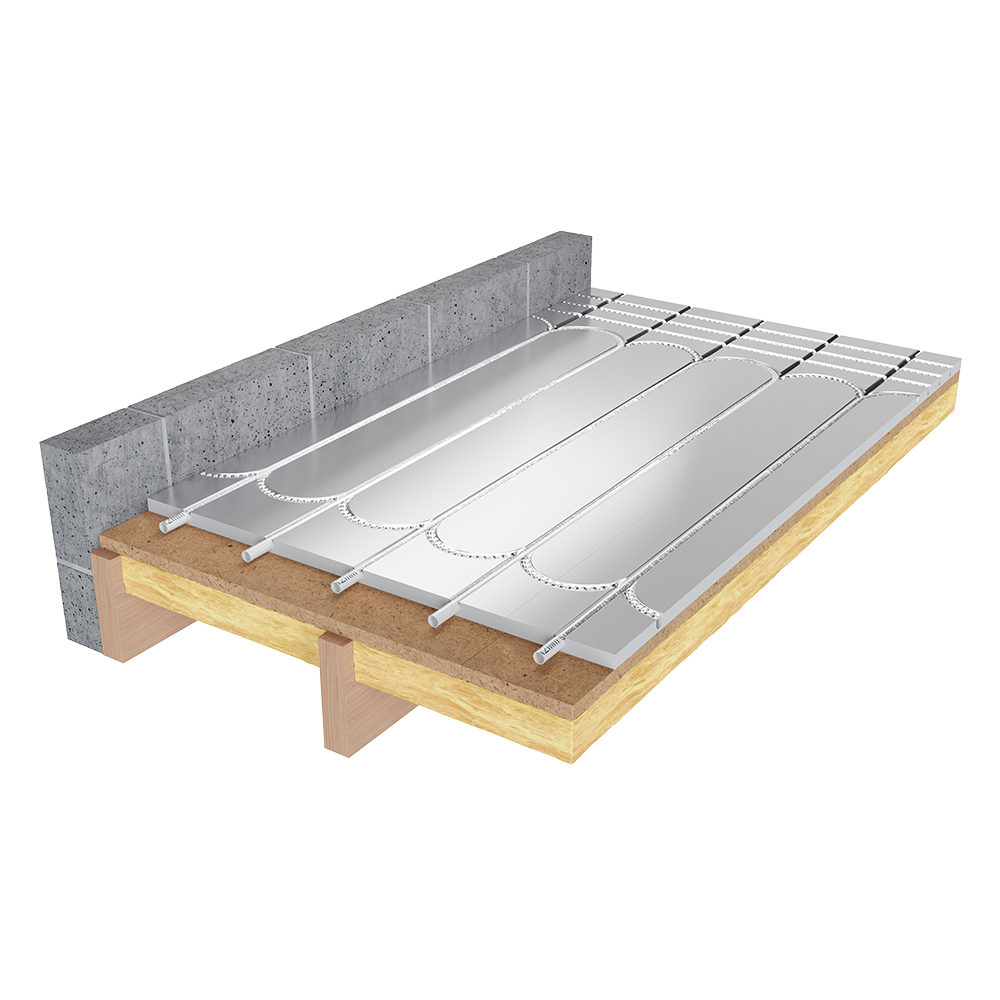

System Components & Build‑Up
- Final floor finish (see “Floor Finishes”)
- OverDeck® 20 pre‑grooved XPS panels with foil face (Universal & Highway) 1200 x 600 x 20mm – 0.72m² per sheet
- 16mm Ambiente UFH pipe (6m per m²) at 150mm centres
- Structural subfloor: solid or suspended, level and firm, to fully support the system
This arrangement provides a stable, thermally efficient platform for a wide range of room layouts while keeping overall floor height increase to a minimum.
Thermal Performance

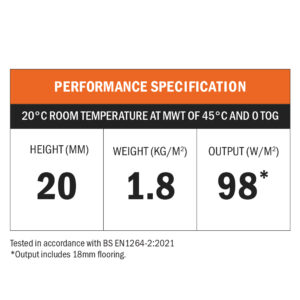

Tested in accordance with BS EN 1264‑2:2021, OverDeck® 20 achieves up to 98 W/m² at 20°C room temperature with MWT 45°C and 0 tog covering. Performance will vary depending on covering type, pipe centres and building heat‑loss characteristics.
Floor Finishes
- Timber (≥ 15mm): Lay directly over panels.

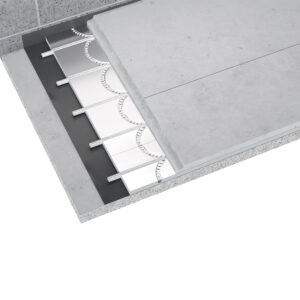

- Tiles / Carpet / LVT: Install over an intermediate flooring board for load‑spread and performance.
- Direct‑tile Option: Use AmbiDeck® 20 Pro where a fully bondable, tile‑ready surface is required.
Benefits of the OverDeck® 20 System
Low-profile build-up
20mm construction suited for projects with limited floor height
Aluminium foil layer
Enhances heat distribution across the floor surface
Lightweight
Suitable for timber floors and retrofit installations
Speed of installation
Designed for quick and efficient setup
Technical Data
| Specification | Value |
|---|---|
| System Type | Low-profile |
| Subfloor | Solid and suspended |
| Output (W/m²) | 98 W/m² (based on 20°C room temperature at 45°C mean water temperature and 0 tog) |
| Pipe Size (mm) | 16mm |
| Pipe Centres (mm) | 150mm |
| Panel Size (mm) | Universal panel (1200mm x 600mm x 20mm). Highway panel (1200mm x 600mm x 20mm) |
| Floor build up (excluding floor finishes) | 20mm |
| Compressive Strength (kPa) | 400 kPa |
| Thermal Conductivity (W/m²k) | 0.035 W/mK |
| Maximum loop coverage: | Up to 13m² per loop |
| Heatpump ready | Yes |
| Weight (kg/m²) | 1.8 kg/m² (wet weight) |
OverDeck® 20 FAQs
Yes. OverDeck® 20 can be installed on suspended or solid subfloors provided the base is structural, level and firm to fully support the panels and finish.
