AmbiDeck® 20 Pro
Low-Profile System
AmbiDeck® 20 Pro
AmbiDeck® 20 Pro is a high‑performance, low‑profile underfloor heating (UFH) system designed for retrofit projects where floor build‑up must be kept to an absolute minimum. At just 20mm thick, the AmbiDeck 20 Pro panels incorporate high‑density XPS insulation and a cement‑coated, tile‑ready surface, enabling direct tiling without the need for additional boards. Its high-thermal material and unique lozenge‑shaped design increases heat output by +50% compared with standard boards, improving coverage and delivering exceptional performance.
The system accommodates 16mm UFH pipe within precision‑cut channels, including a built‑in 150mm radius return, and allows easy routing of additional channels on site where required. AmbiDeck® 20 Pro is tested to BS EN 1264‑2:2021 and is suitable for both concrete and timber subfloors, provided the base is flat, clean and level. Panels may be adhered or mechanically fixed depending on the substrate.
Because tiling can be applied directly over the AmbiDeck® 20 Pro surface, the system is ideal for bathrooms, kitchens and high‑performance retrofit applications where thermal responsiveness and robust floor coverings are essential. For carpet, vinyl or wooden floors, a minimum of 6mm levelling compound should be used.
Why Choose AmbiDeck® 20 Pro?
- Exceptionally High Output: Up to 120 W/m² at 45°C MWT and 20°C room temperature (0 tog/tile).
- Direct‑Tile Surface: Cement‑coated face allows tiles to be installed directly after priming.
- 20mm Low‑Profile Build‑Up: Minimises floor height increase in retrofit scenarios.
- Lozenge‑Shaped Board Design: Provides +10% output and improved heat distribution as levelling compound surrounds the pipe.
- High Thermal Performance: XPS insulation with 0.031 W/mK conductivity and rigid cement‑coated surface for stability.
- Flexible Installation: Suitable for both concrete and timber subfloors; adhere with flexible tile adhesive or DeckBond spray adhesive, or screw (timber).

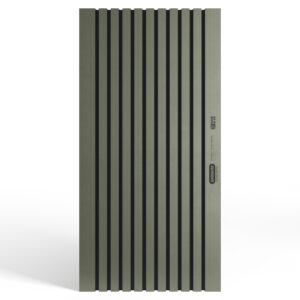

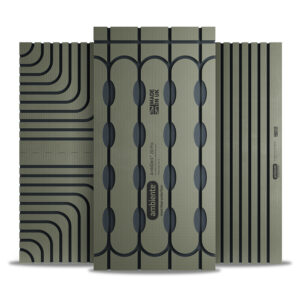

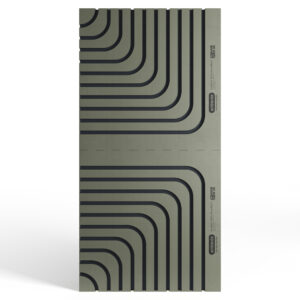

- Three Panel Types: Universal, Highway, and Corner panels for full layout flexibility.

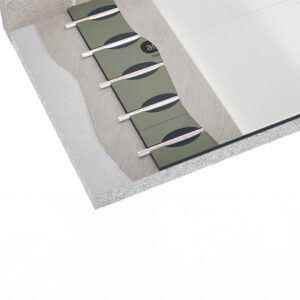

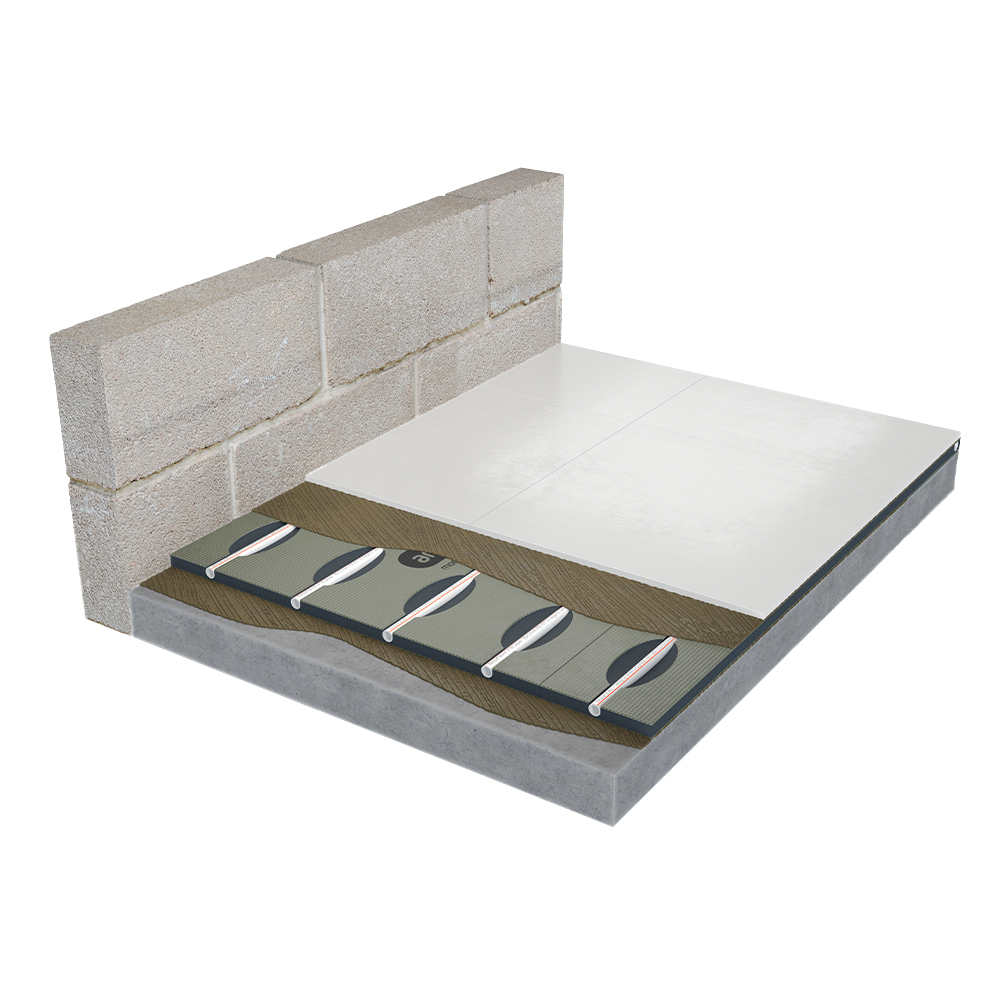

System Components & Build‑Up
- Floor finish (tile directly; or 6mm levelling compound for carpet/vinyl/wood)
- Flexible tile adhesive (for concrete substrates) or AmbiDeck® screws & washers (12 per board, for timber)

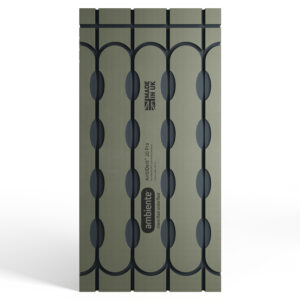

- AmbiDeck® 20 Pro Universal, Highway, and CornerBoard panels – 1200 x 600 x 20mm
- 16mm UFH pipe installed in lozenge‑shaped channels with 150mm centres and 150mm radius returns
- Concrete or timber subfloor, flat and level
This engineered assembly creates a high‑efficiency, load‑stable and tile‑ready UFH system suitable for both domestic and light‑commercial applications.

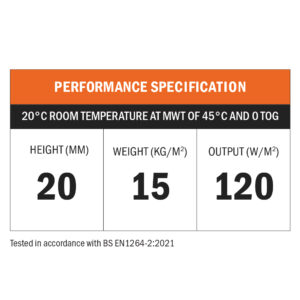

Thermal Performance
Tested to BS EN 1264‑2:2021, AmbiDeck® 20 Pro achieves up to 120 W/m² at 20°C room temperature with MWT 45°C and 0 tog covering. Performance will vary depending on covering type, pipe centres and building heat‑loss characteristics.
Floor Finishes
- Tiles: Lay directly after priming panels; fill joints with flexible adhesive.

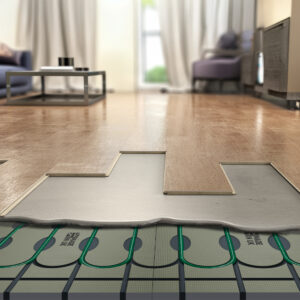

- Carpet / Vinyl / Wood: Apply minimum 6mm levelling compound before installation.
- LVT: As per vinyl installation – requires levelling layer for smooth finish.
Benefits of the AmbiDeck® 20 Pro System
Low-profile build-up
20mm construction suited for projects with limited floor height
Tile over directly
Suitable for tiled finishes without additional overlay boards
High thermal insulation
+10% thermal value over traditional AmbiDeck® models
Corrects uneven subfloors
Suitable for use over uneven subfloors
Technical Data
| Specification | Value |
|---|---|
| System Type | Low-profile |
| Subfloor | Solid and suspended |
| Output (W/m²) | 120 W/m² (based on 20°C room temperature at 45°C mean water temperature and 0 tog) |
| Pipe Size (mm) | 16mm |
| Pipe Centres (mm) | 150mm |
| Panel Size (mm) | Universal panel (1200mm x 600mm x 20mm). Highway panel (1200mm x 600mm x 20mm). CornerBoard panel (1200mm x 600mm x 20mm). |
| Floor build up (excluding floor finishes) | 20mm |
| Compressive Strength (kPa) | 300 kPa |
| Thermal Conductivity (W/m²k) | 0.031 W/mK |
| Maximum loop coverage: | Up to 18m² per loop |
| Heatpump ready | Yes |
| Weight (kg/m²) | 15 kg/m² (includes board and pipe) |
| UK Patent Pending | 2402953.0 |
AmbiDeck® 20 Pro FAQs

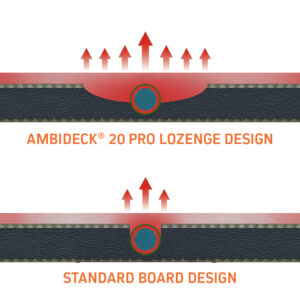

Its high thermal material and unique lozenge shaped design improves heat transfer by allowing levelling compound to envelop the pipe, increasing output by a further 50% over other standard board designs.
Installing the AmbiDeck® 20 Pro System
Step 1. Ensure the working area is swept, clean and stable. Prime concrete surfaces to improve adhesion before laying the system.

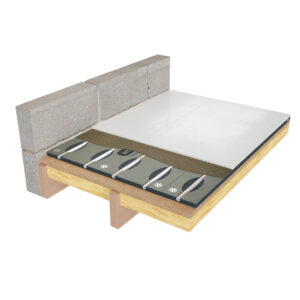

Step 2. Spread an even bed of flexible tiling adhesive over the area before laying the AmbiDeck® 20 Pro panels. For timber subfloors, mechanically fix each board using AmbiDeck® Screws and Washers (12 fixings per board).
Step 3. Install the AmbiDeck® 20 Pro panels across the full area, ensuring the radius returns are positioned correctly at room edges. Allow the adhesive to fully dry before proceeding.
Step 4. Fit the UFH pipework into the channels in the AmbiDeck® 20 Pro panels, following the pipe layout shown on the supplied UFH design drawing.
Step 5. Tiling can be installed directly – prime the boards and fill any gaps with flexible tile adhesive. For carpet, vinyl or wood flooring, apply a minimum 6 mm levelling compound over the AmbiDeck® 20 Pro system before laying the final finish.
