AmbiSolo®
Low-Profile System
AmbiSolo®
AmbiSolo® is a super‑low‑profile castellated underfloor heating (UFH) system engineered for refurbishment projects where floor build‑up must be kept to an absolute minimum. Incorporating 12mm AmbiFlex® P12 pipe within a 16mm self‑adhesive castellated panel, the system is finished with a fibre‑reinforced levelling compound to deliver a total build‑up of just 18-22mm.
Designed to be laid directly onto a structural, level subfloor, AmbiSolo® is suitable for both concrete and chipboard bases, but must not be installed over insulation or floating substrates. Once levelled, most floor finishes can be installed directly, with tiles benefiting from a decoupling membrane to accommodate lateral movement and protect grout lines.
With rapid heat‑up times of just 15-25 minutes, AmbiSolo® provides radiator‑like responsiveness but with the comfort and efficiency of UFH. Its exceptional heat output up to 135 W/m² makes it one of the highest‑performing low‑profile systems on the market.
Why Choose AmbiSolo®
- Exceptional Heat Output: Up to 135 W/m² at 45°C MWT and 20°C room temperature (0 tog/tile).
- Ultra Low‑Profile Build‑Up: Only 18-22mm total thickness, ideal for height‑restricted refurbishments.
- Rapid Response Time: Heats up in 15-25 minutes, depending on floor covering.
- Self‑Adhesive Panel: One‑step fixing ensures fast, secure installation without additional materials.
- Fully Bonded System: Levelling compound forms a solid structural surface over the castellated panel.
- Direct‑Finish Compatibility: Most floor coverings can be applied directly once levelled (with decoupling membrane recommended for tiles).

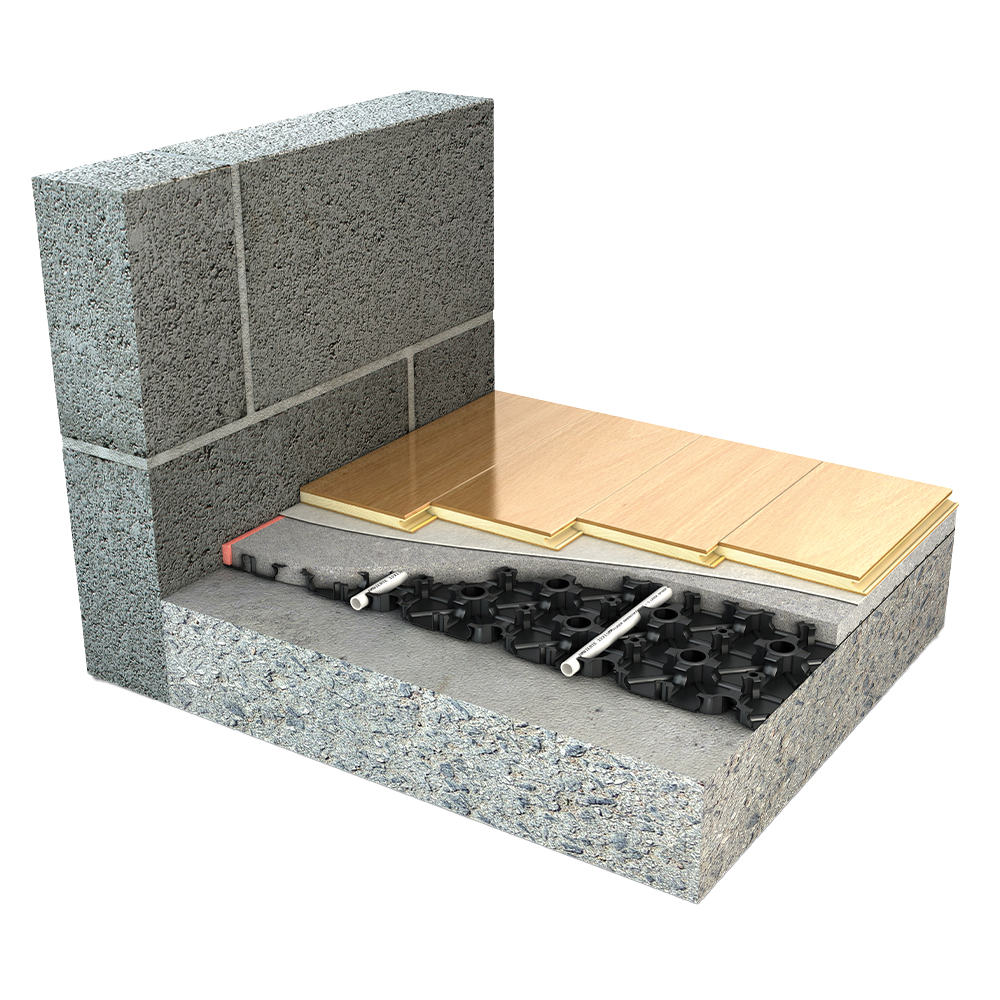

System Components & Build‑Up
- Final floor finish (tile directly; or suitable finish after levelling compound)
- Fibre‑reinforced levelling compound (AmbiFibre Pro recommended)
- AmbiSolo® 16 mm castellated self‑adhesive panel (1000 x 600 x 16mm)
- 12mm AmbiFlex® P12 pipe – approx. 8m per m² of heated area

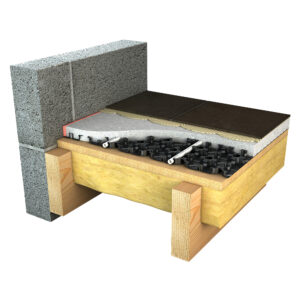

- Structural, level subfloor: concrete or chipboard (not insulation or floating substrates)
This bonded assembly results in a high‑performance, fast‑responding UFH solution ideal for space‑constrained retrofits.

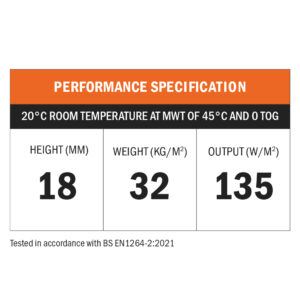

Thermal Performance
Tested to BS EN 1264‑2:2021, AmbiSolo® achieves up to 135 W/m² at 20°C room temperature with MWT 45°C and 0 tog covering. Performance will vary depending on covering type, pipe centres and building heat‑loss characteristics.
Floor Finishes
- Tiles: Direct tiling once levelled; decoupling membrane recommended.
- Carpet / Vinyl / LVT: Lay after levelling compound has fully cured.
- Wood: Install once moisture content and manufacturer requirements are met.
Benefits of the AmbiSolo® System
Low-profile build-up
18mm construction suited for projects with limited floor height
High output
AmbiSolo produces a heat output of up to 135 W per M²
Fully bonded system
Bonded to the subfloor for secure pipes and effective heat transfer

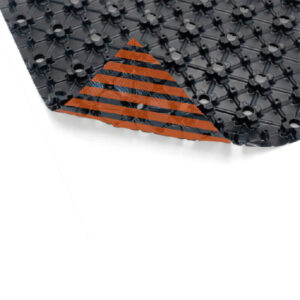

Self-adhesive backing
Enables fast and secure fixing without mechanical fixings
Technical Data
| Specification | Value |
|---|---|
| System Type | Low-profile |
| Subfloor | Solid and suspended |
| Output (W/m²) | 135 W/m² (based on 20°C room temperature at 45°C mean water temperature and 0 tog) |
| Pipe Size (mm) | 12mm |
| Pipe Centres (mm) | 150mm |
| Panel Size (mm) | Self-adheive panel (1000mm x 600mm x 16mm) - 0.6m². |
| Floor build up (excluding floor finishes) | 18mm |
| Maximum loop coverage: | Up to 13m² per loop |
| Heatpump ready | Yes |
| Weight (kg/m²) | 32 kg/m² (includes UFH and screed. Excludes insulation) |
AmbiSolo® FAQs
No. AmbiSolo® must be installed directly onto a structural, level subfloor - not over insulation, tiles, laminate or floating systems.
