AmbiDeck® 20 Pro UFH System Panel – 1200mm x 600mm x 20mm
Price range: £30.77 through £38.64
The AmbiDeck® 20 Pro is a high-performance, low-profile underfloor heating system designed for both new-build and retrofit projects. At just 20 mm thick, it combines outstanding thermal efficiency, structural strength, and simple installation – making it ideal for spaces where floor height is restricted.
Its patent-pending lozenge-shaped design (UK Patent 2402953.0) delivers up to +10% higher heat output than standard UFH panels. A cement-coated surface allows for direct tiling, while the integrated high-density XPS insulation (0.031 W/mK thermal conductivity) ensures excellent energy retention and even heat distribution.
Compatible with high-flow 16 mm pipework, AmbiDeck® 20 Pro achieves outputs of up to 120 W/m², providing fast response times and efficient, comfortable heating – all within an ultra-slim 20 mm profile.
Key Features
- Low-Profile Build-Up – Just 20mm system thickness
- Unique Lozenge Design – +10% heat output vs traditional UFH board designs
- High Thermal Performance – 0.031 W/mK conductivity for maximum efficiency
- 16mm Pipe Compatibility – Supports high-flow UFH systems for superior performance
- Direct Tiling – Cement-coated surface suitable for direct tile installation
- Integrated Insulation Layer – Eliminates need for separate insulation

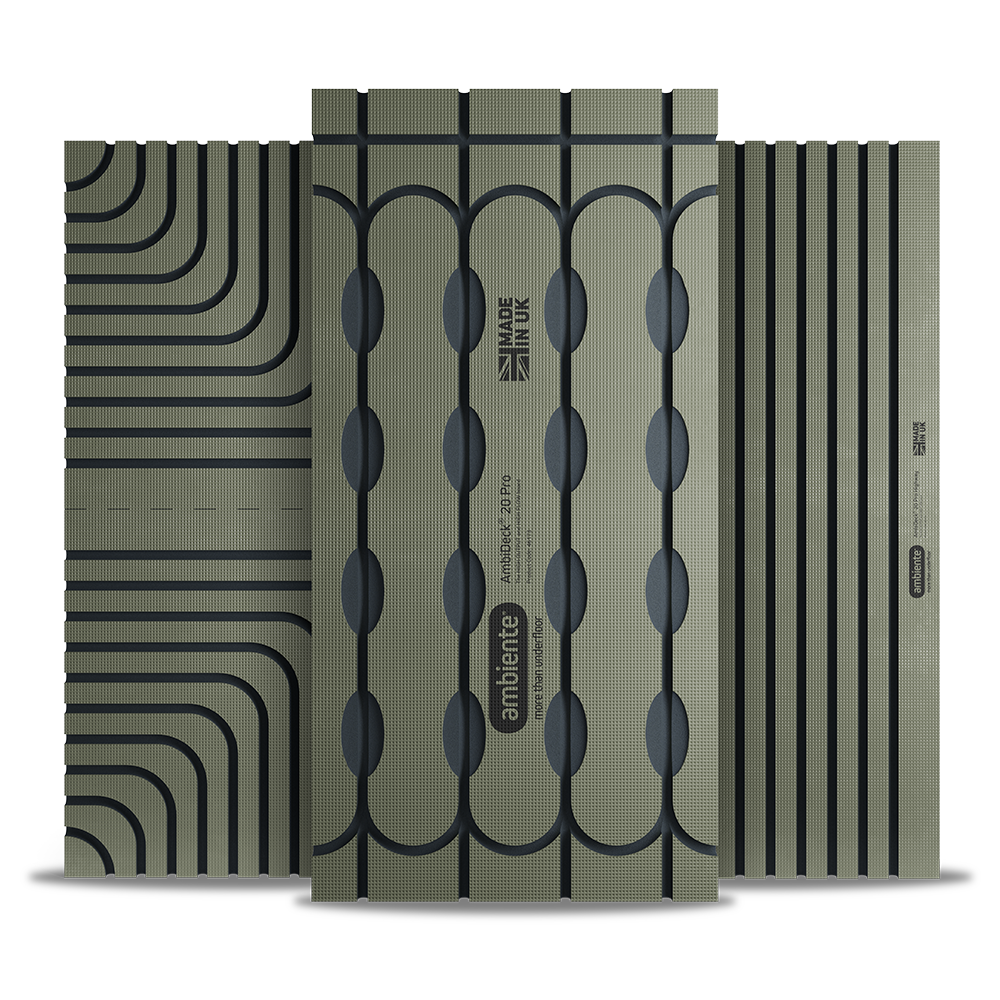

System Panels:

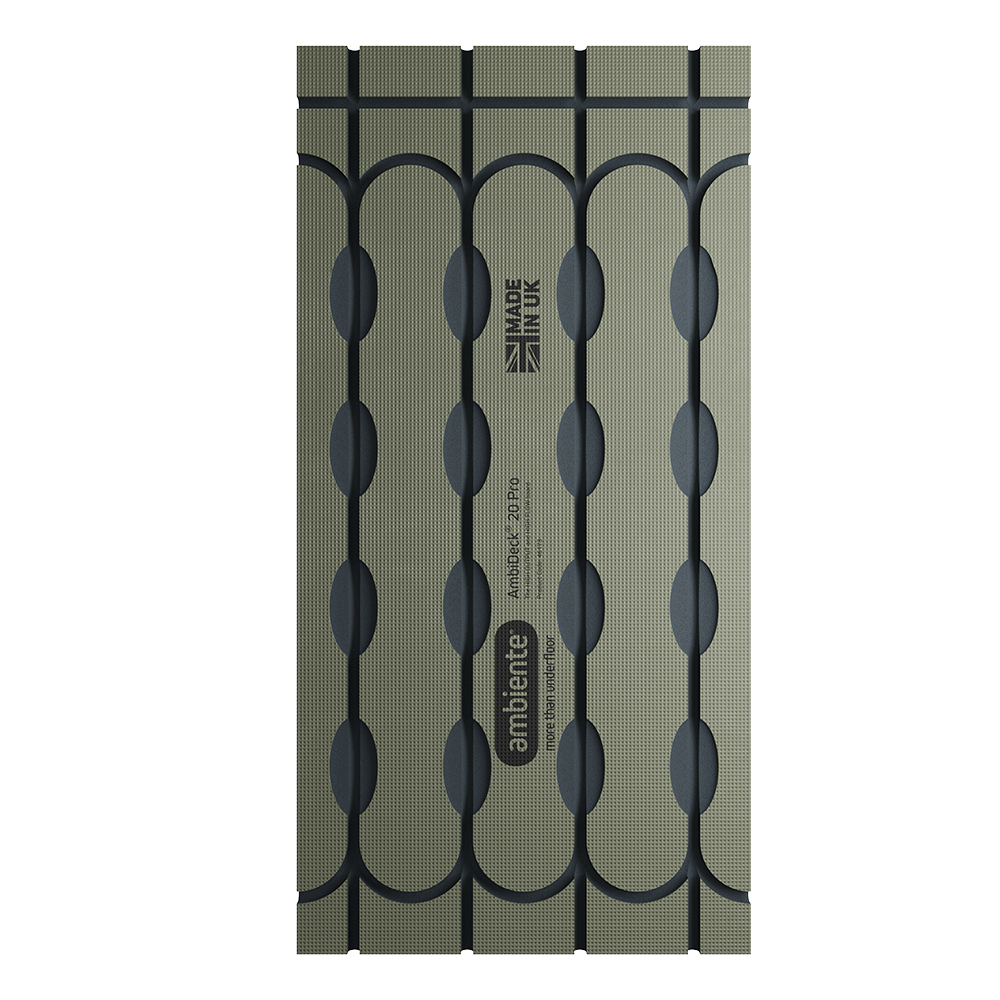

- Universal Panel – 1200mm x 600mm x 20mm (Product Code: 46173)

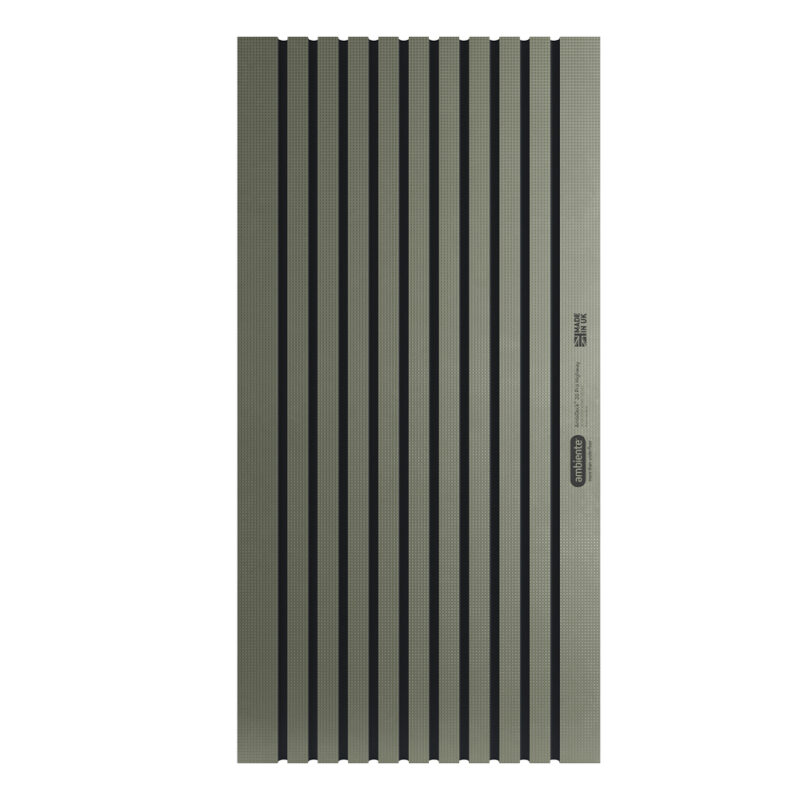

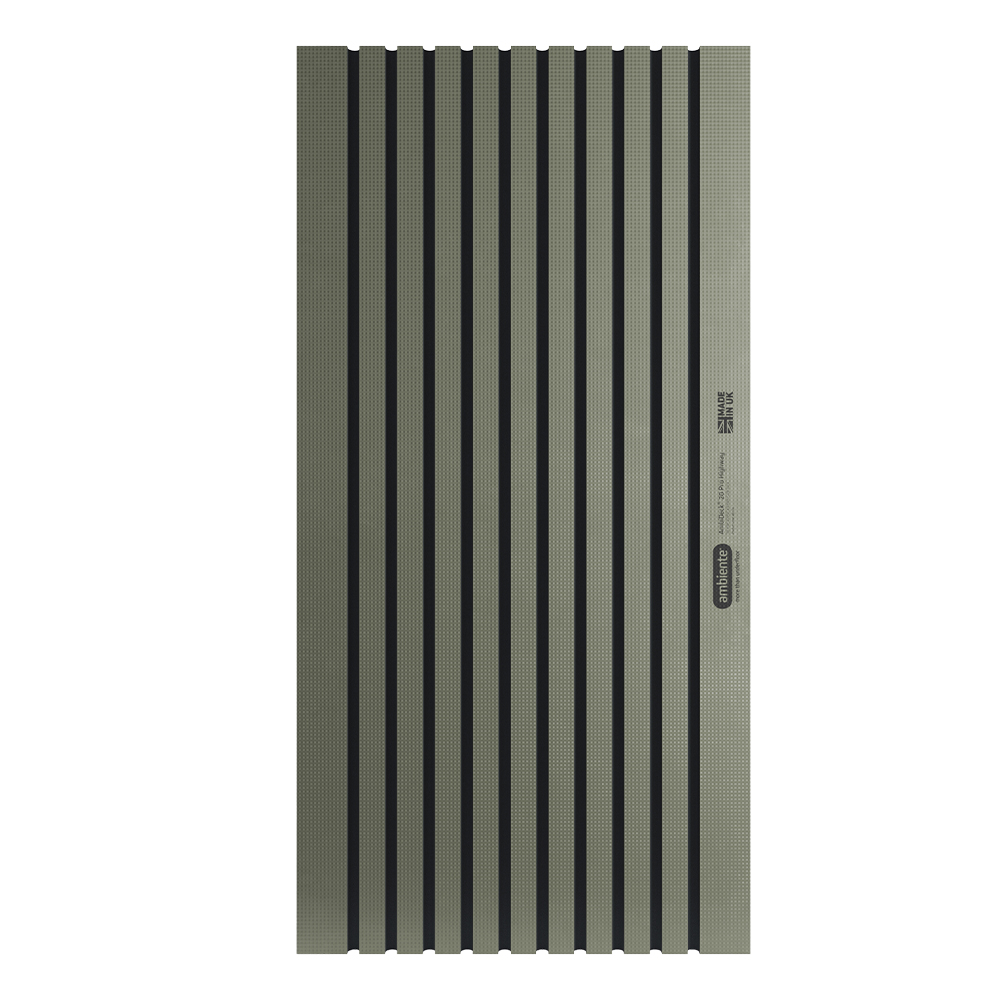

- Highway Panel – 1200mm x 600mm x 20mm (Product Code: 46174)

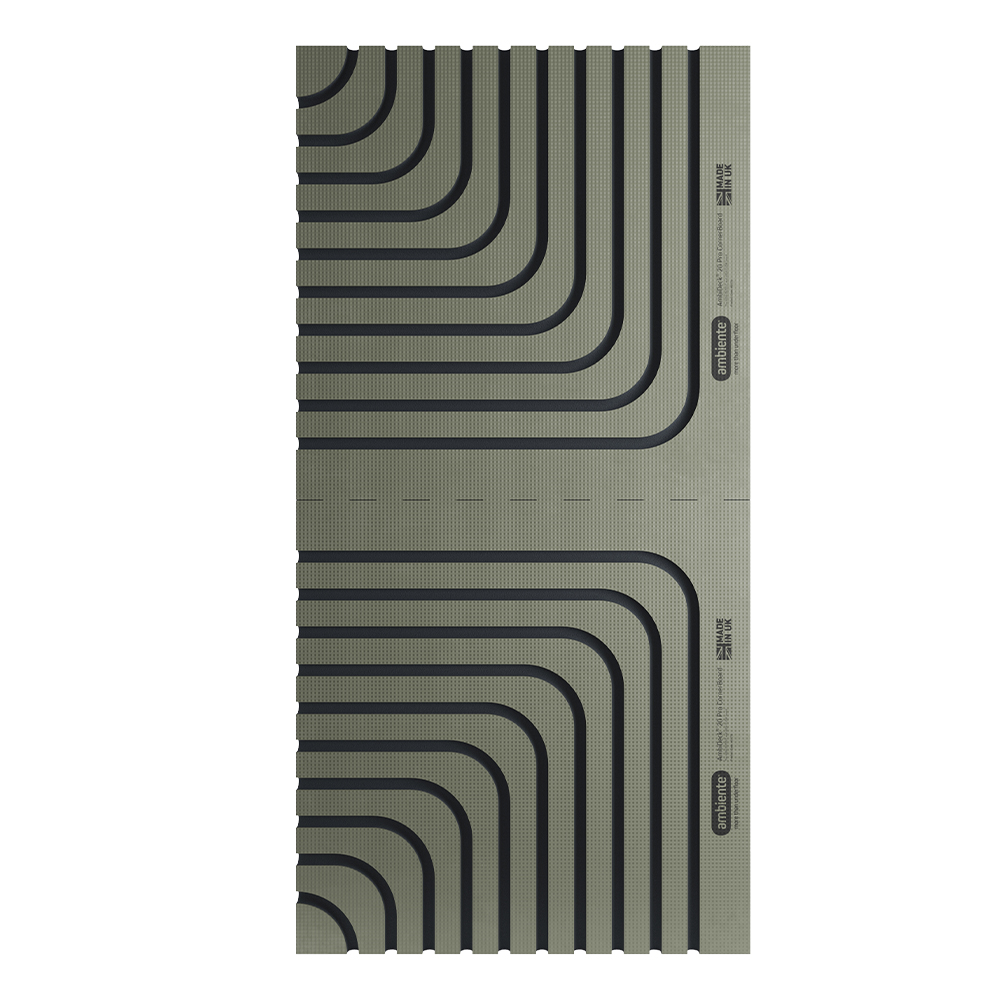

- CornerBoard Panel – 1200mm x 600mm x 20mm (Product Code: 46175)
Frequently Asked Questions (FAQs):
Q: Can AmbiDeck® 20 Pro be fitted over existing floors?
A: Yes, it can be installed on level concrete or timber subfloors, making it ideal for retrofit projects.
Q: Can tiles be laid directly on the panels?
A: Yes, the cement-coated surface allows direct tiling once primed with a suitable tiling primer.
Q: Is AmbiDeck® 20 Pro suitable for heat pumps?
A: Yes, its high thermal conductivity and low water temperature operation make it perfect for heat pump systems.
