JoFloor® 28 UFH System Panel

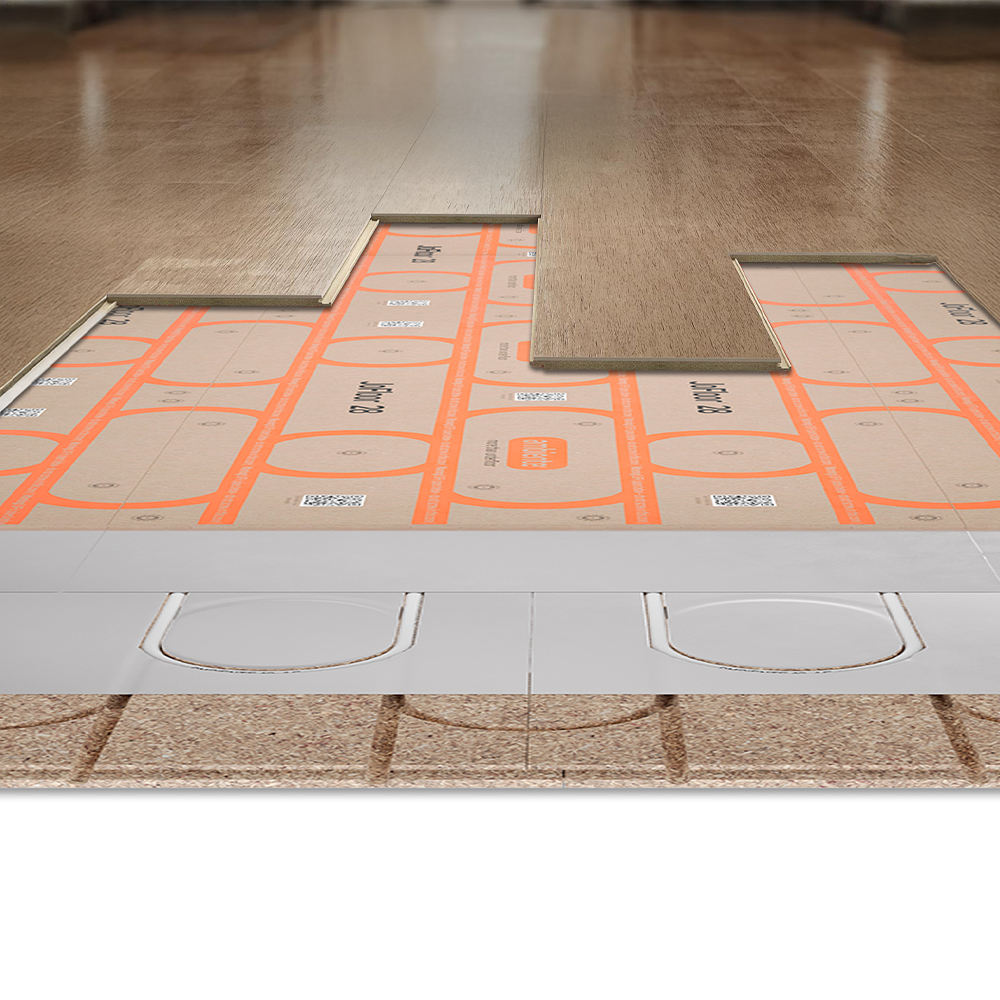

JoFloor® 28 is a 28mm low-profile underfloor heating system designed for renovation projects over timber joists, making it ideal for retrofit applications where floor height and finishes must be retained. The system combines double aluminium foil layers with structural flooring-grade panels to provide rapid heat response, even distribution, and high thermal output of up to 107 W/m².

Printed guides on the top panels clearly indicate pipe routes and fixing points, ensuring fast and accurate installation. The double aluminium foil layers enhance both thermal output and lateral heat spread, delivering a fast response time and efficient heating across timber joist floors.

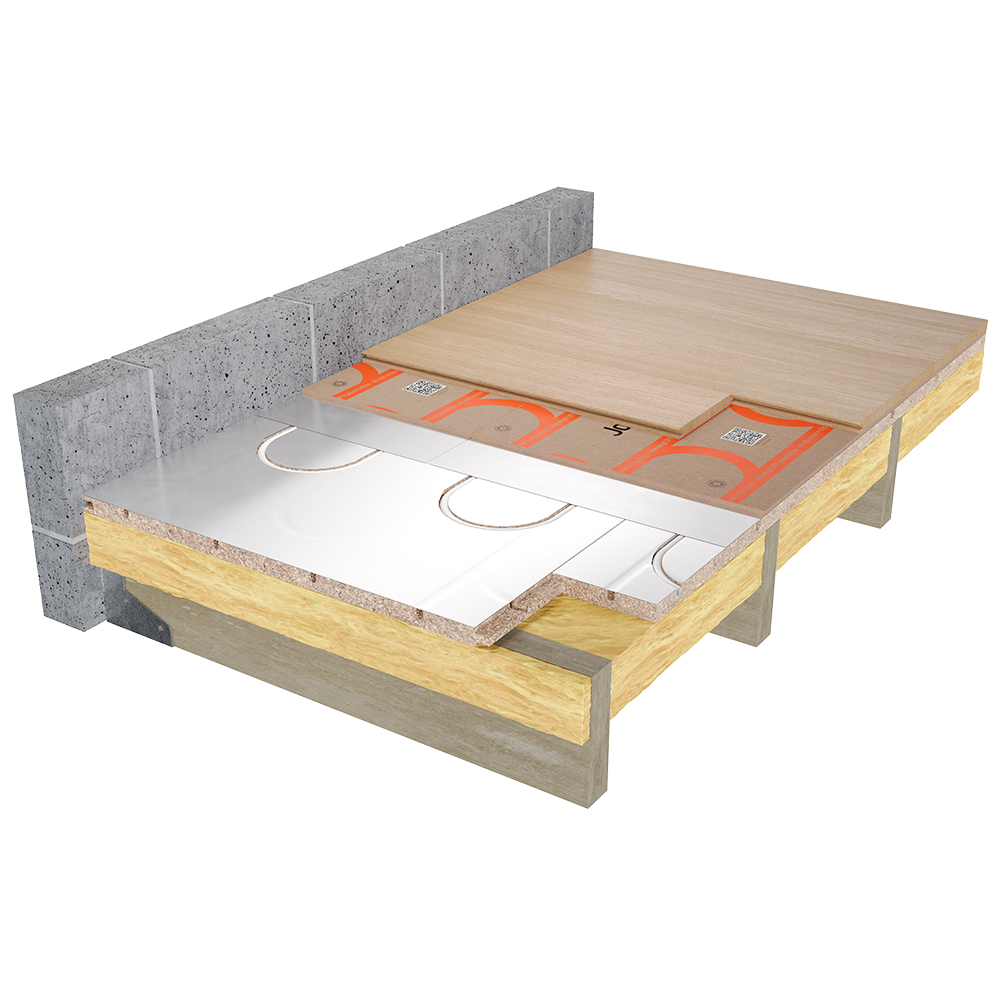

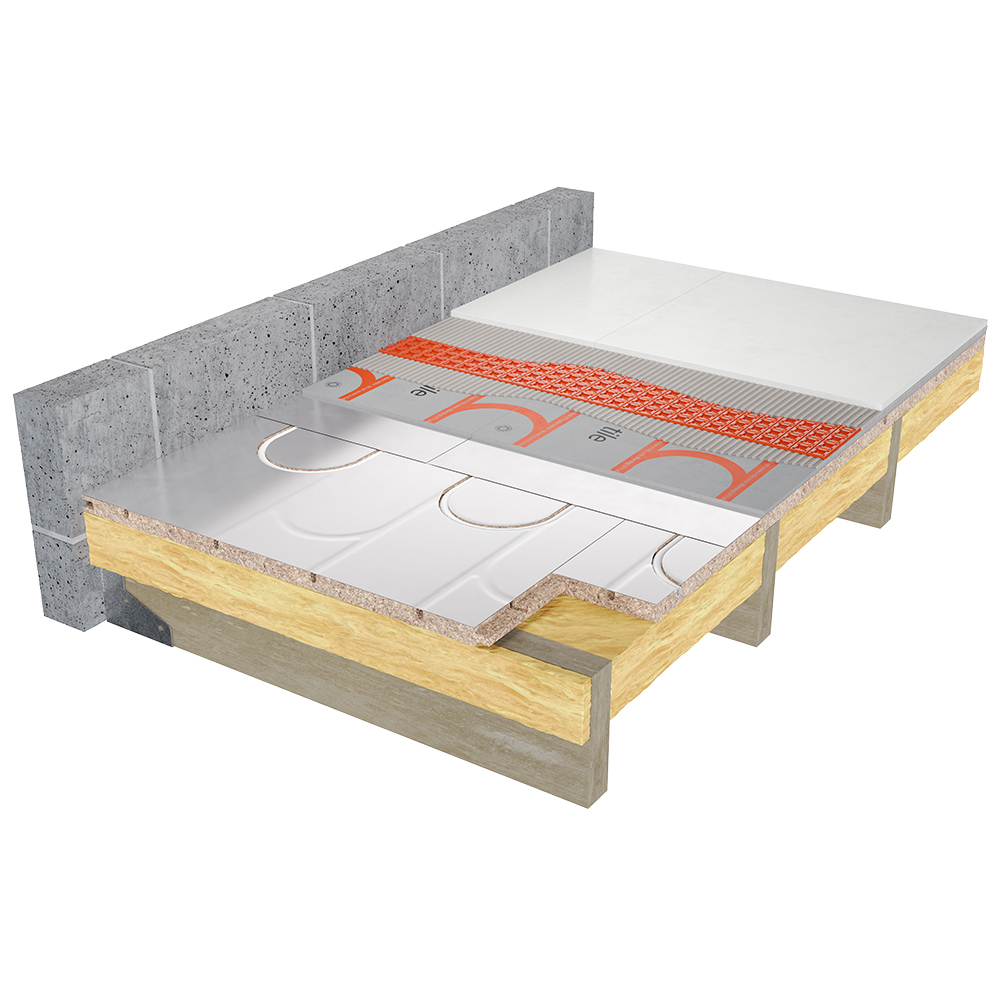

JoFloor® 28 is suitable for carpet, engineered wood, solid wood, or tiled finishes (use the tile top panel for tiles). The system must be installed over a structural, stable, and firm timber joist subfloor, following all floor finish manufacturer guidelines.

Key Features

• Retrofit-Friendly Installation – Fits over timber joists without removing existing flooring
• Structural Build-Up – 28mm total system height for strength and performance
• High Heat Output – Double aluminium foil layers support up to 107 W/m²
• Rapid Response Time – Even heat distribution across timber floors
• Flexible Floor Finish Compatibility – MDF top panel for wood/carpets, tile top panel for tiled floors
• Optimised for 12mm AmbiFlex® P12 Pipe – Efficient flow and heat transfer

System Panels:

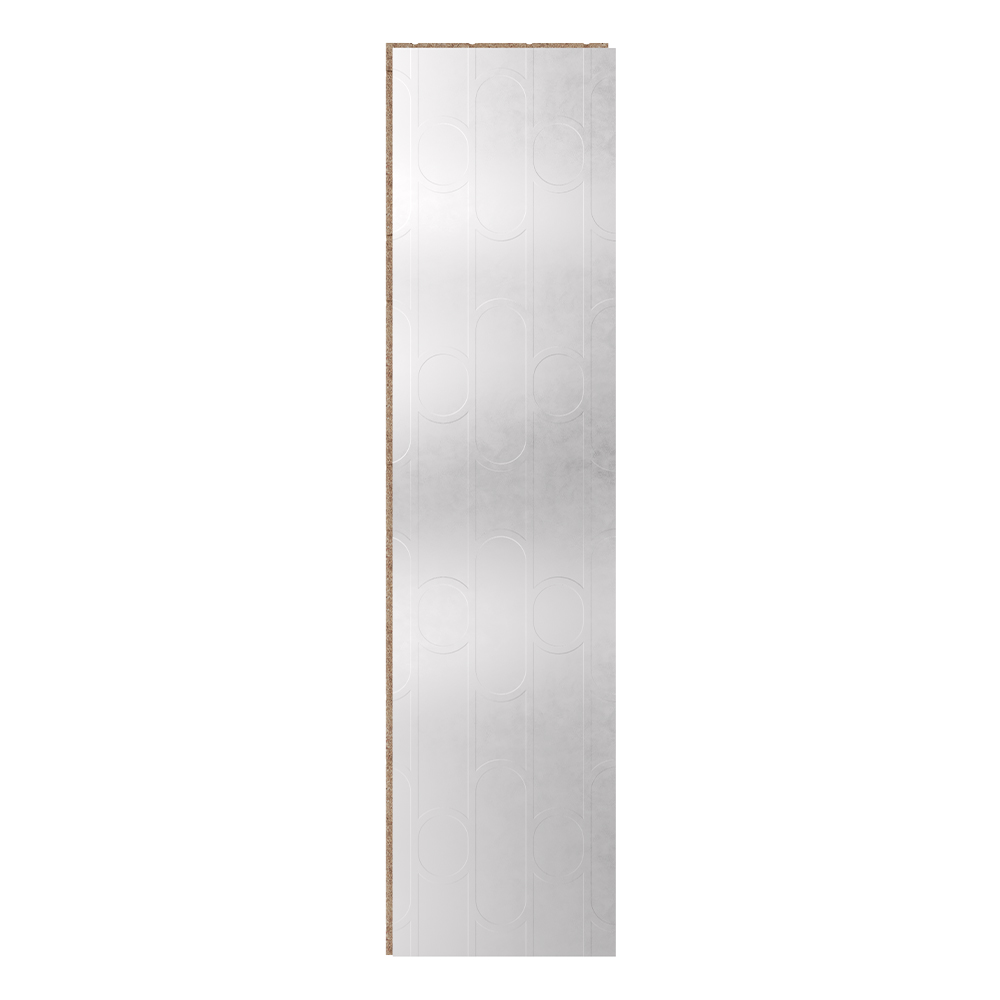

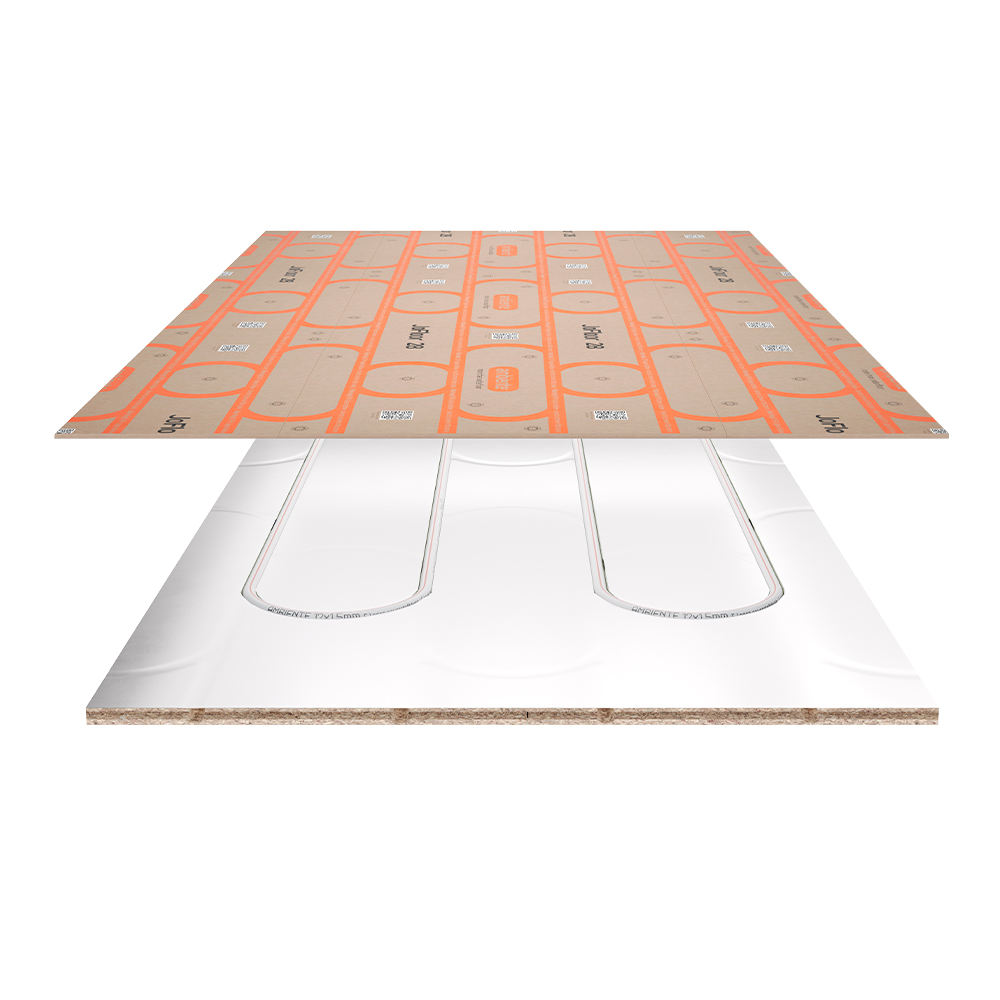

• Base Panel – 2400mm x 600mm x 22mm (Product Code: 46690)

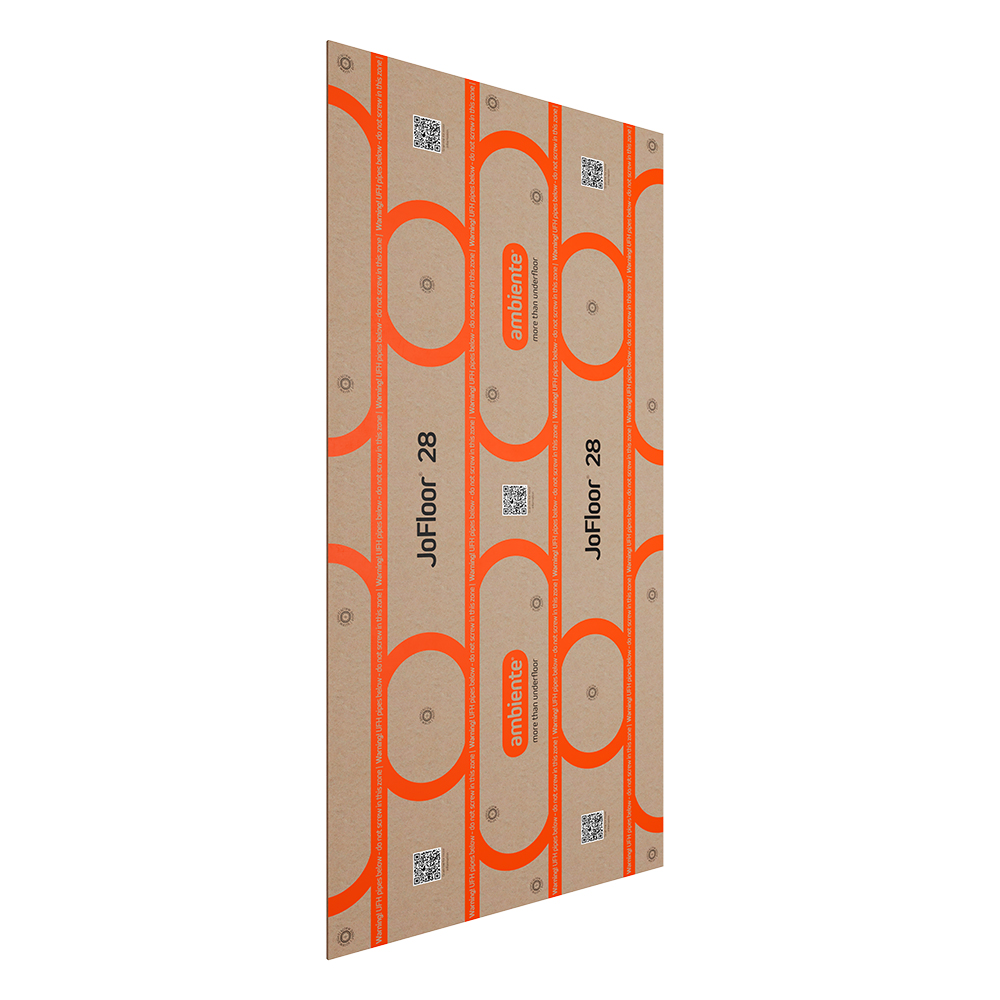

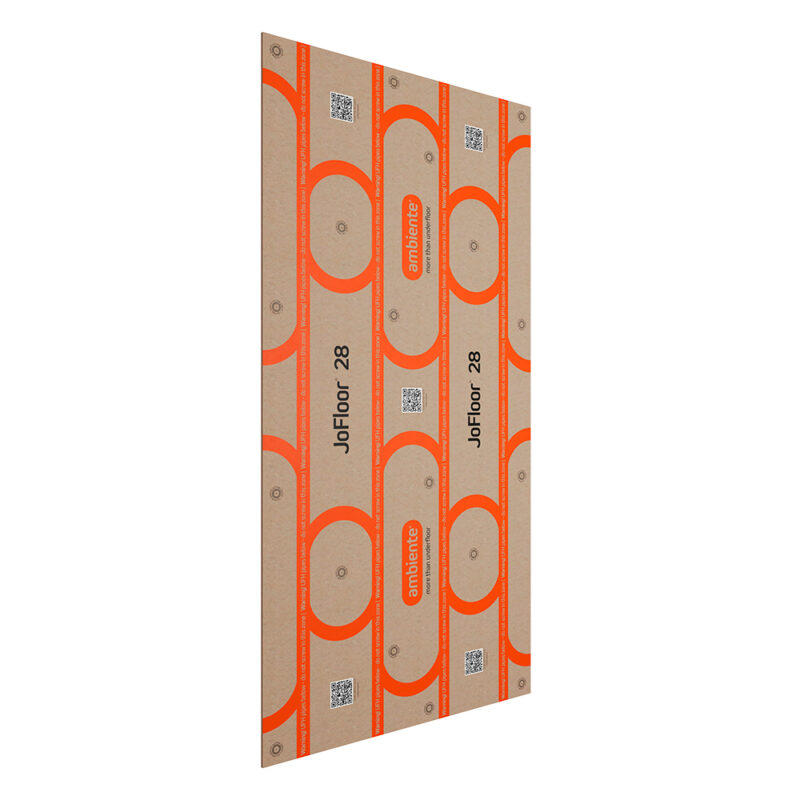

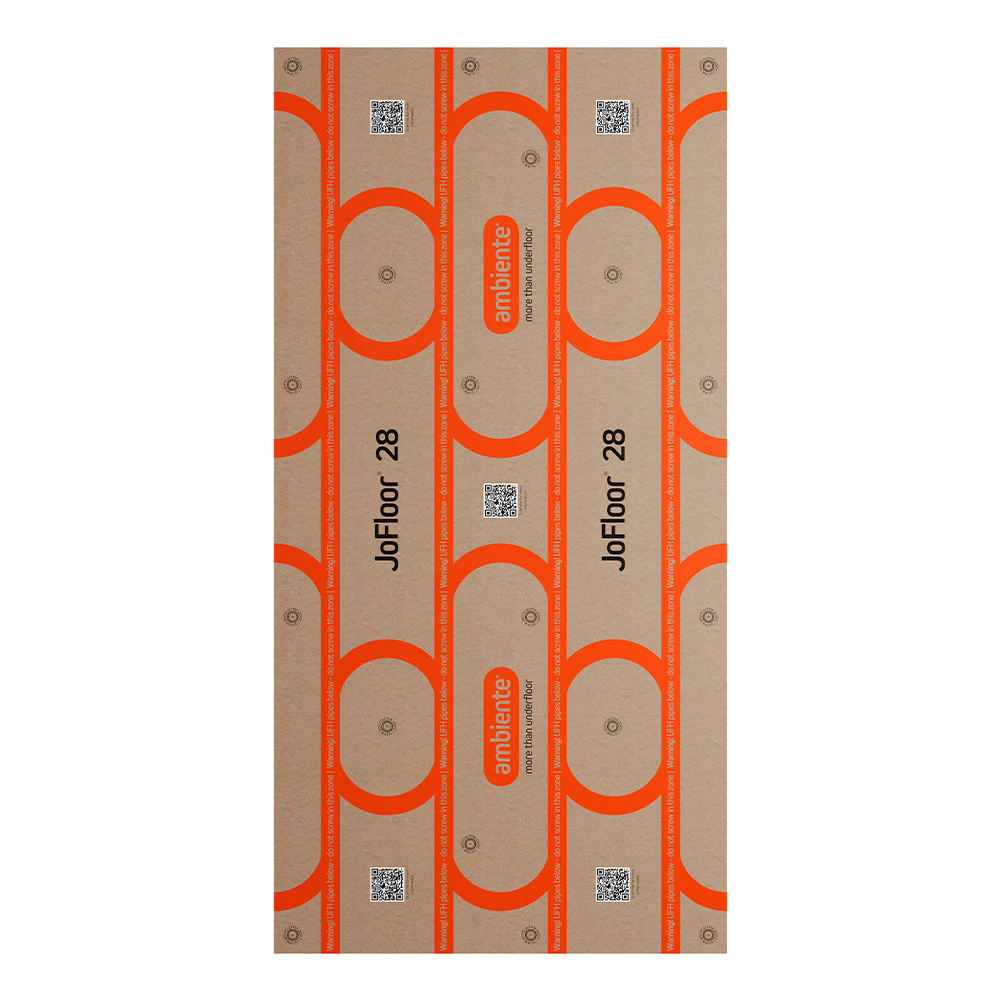

• MDF Top Panel – 1200mm x 600mm x 6mm (Product Code: 46691)

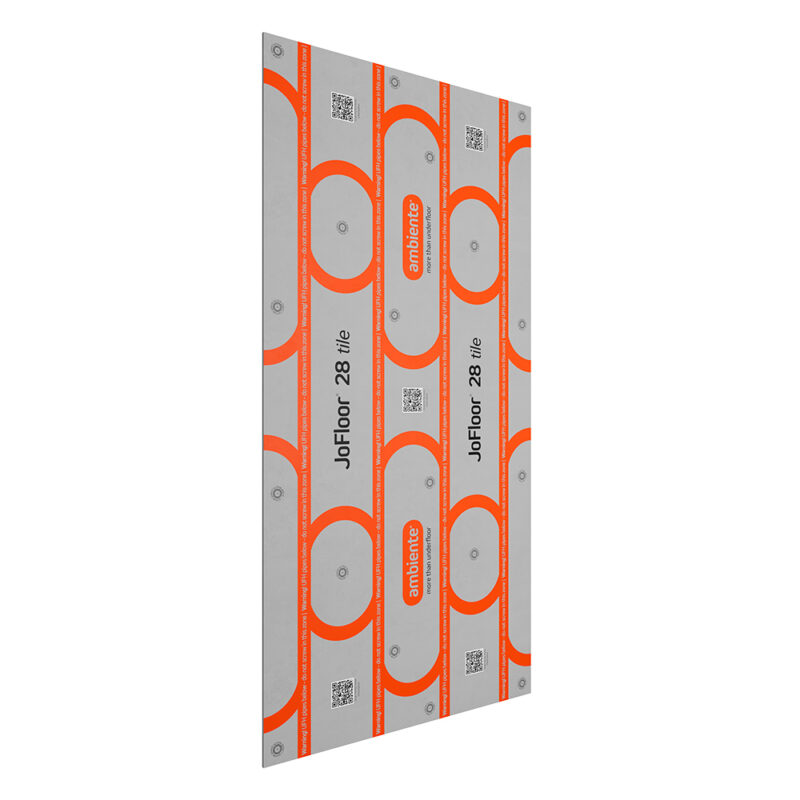

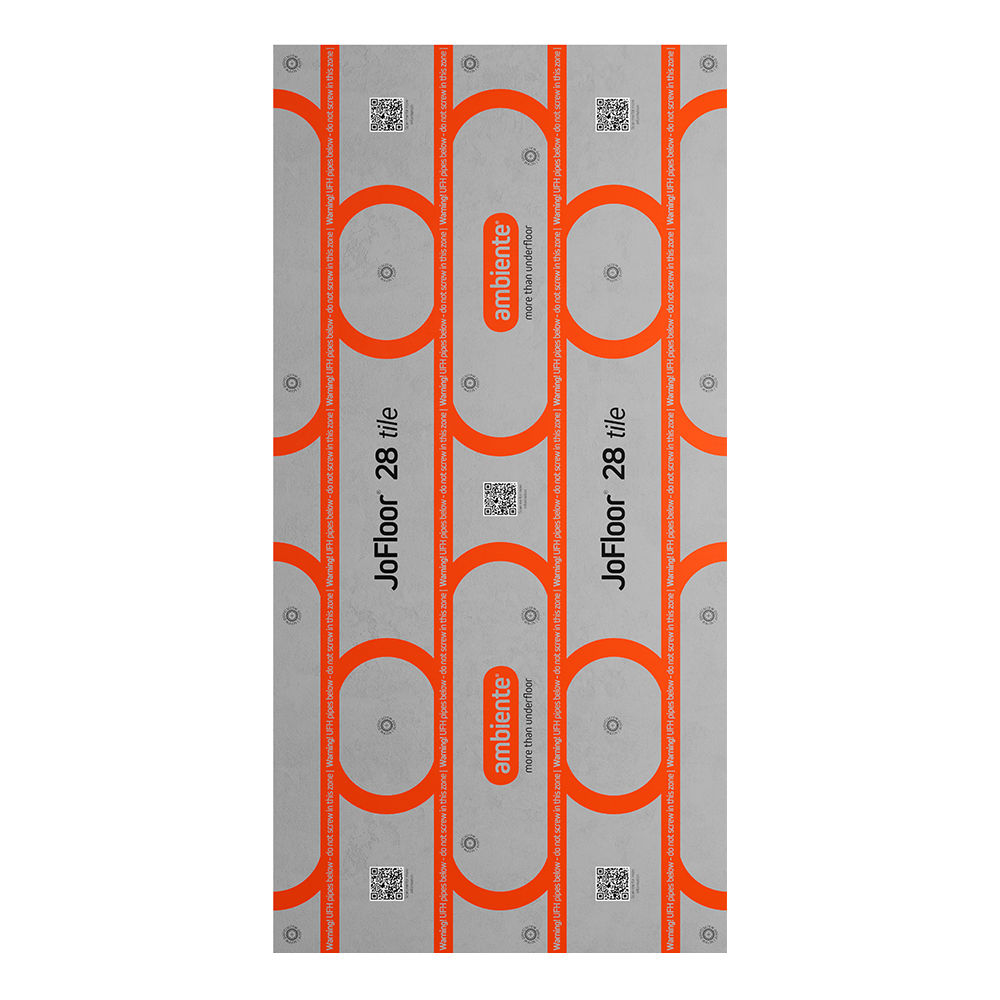

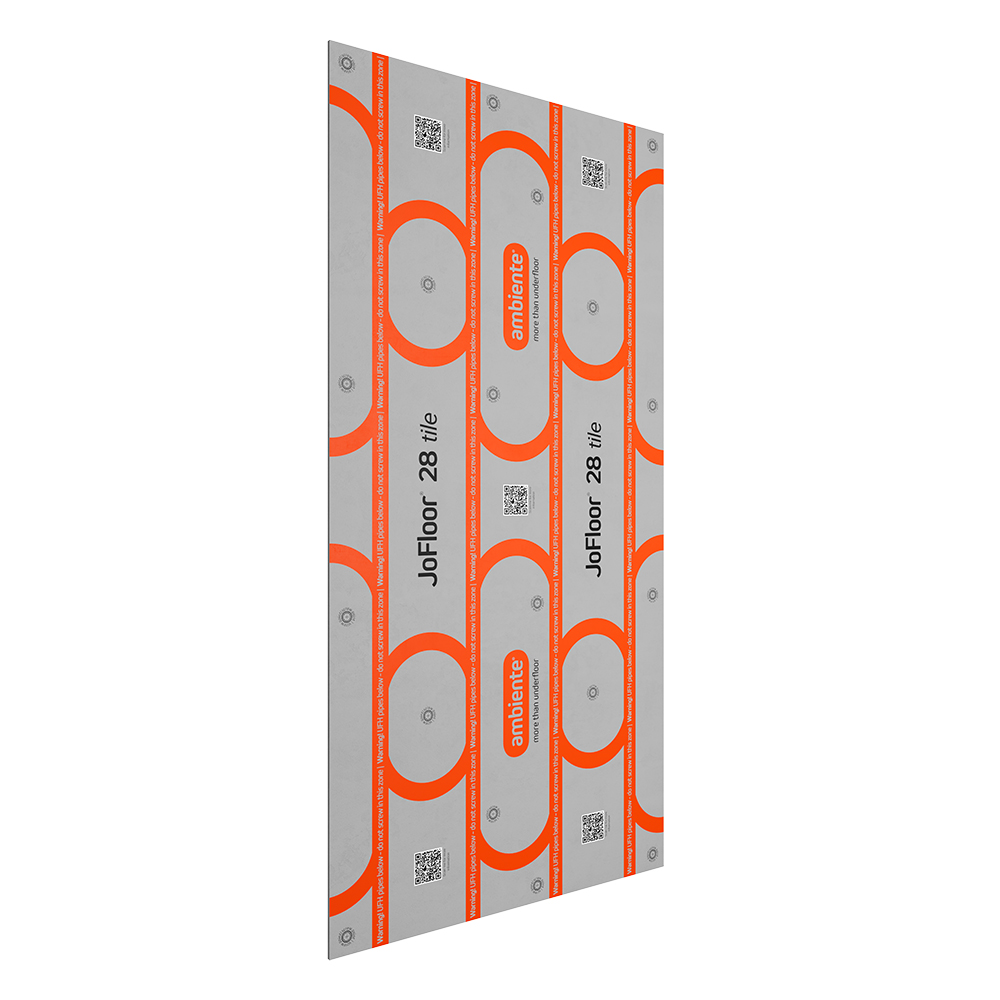

• Tile Top Panel – 1200mm x 600mm x 8mm (Product Code: 46696)

Download Datasheet

Frequently Asked Questions (FAQs):

Q: Can JoFloor® 28 be installed over existing floors?
A: Yes. It is designed for retrofit over timber joists, reducing disruption during renovation.

Q: What pipework does the system use?
A: JoFloor® 28 is designed for 12mm AmbiFlex® P12 pipe installed in the base panel grooves.

Q: Which panel is required for tiled floors?

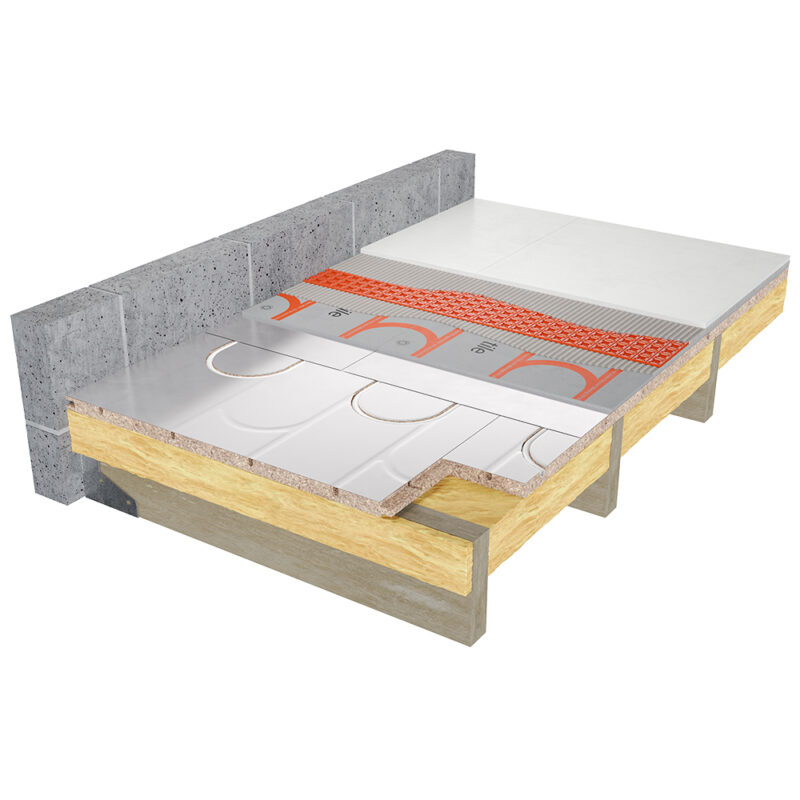

A: The JoFloor® 28 tile top panel (8mm) should be used in place of the standard MDF top panel for tiled finishes.
