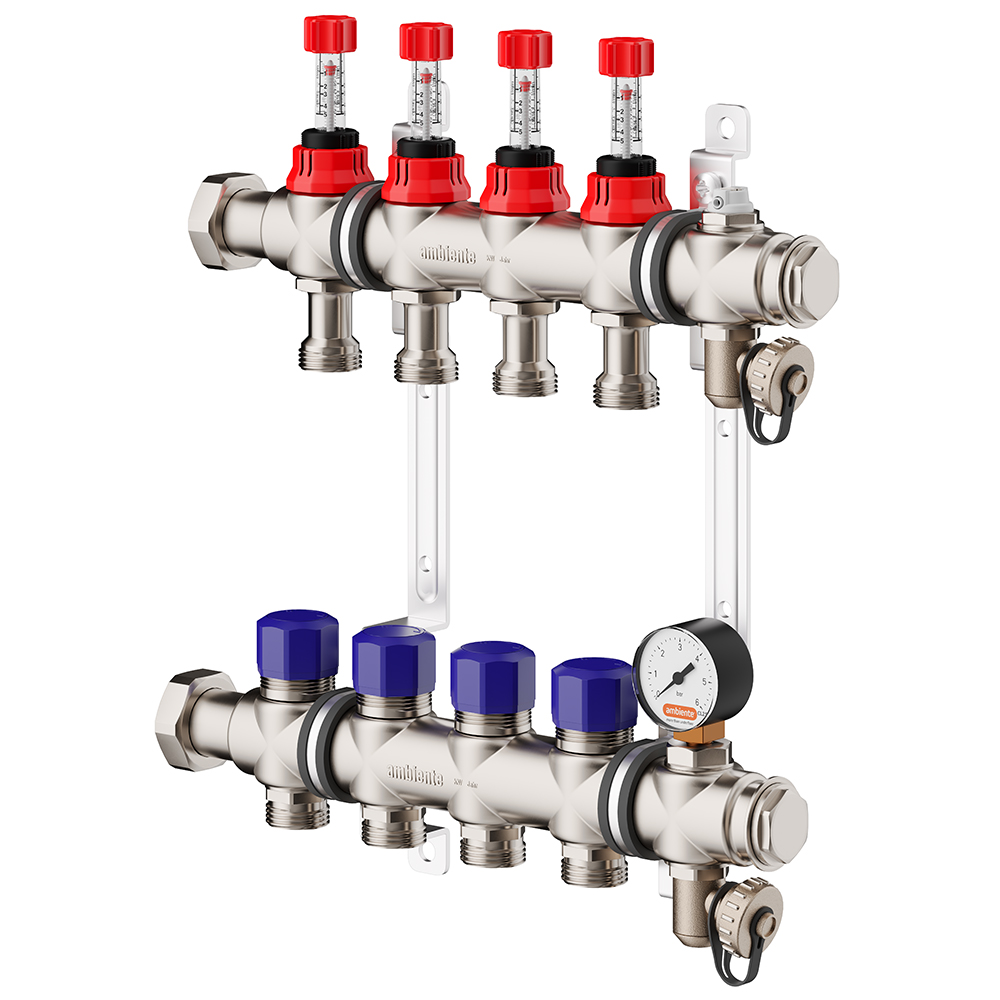

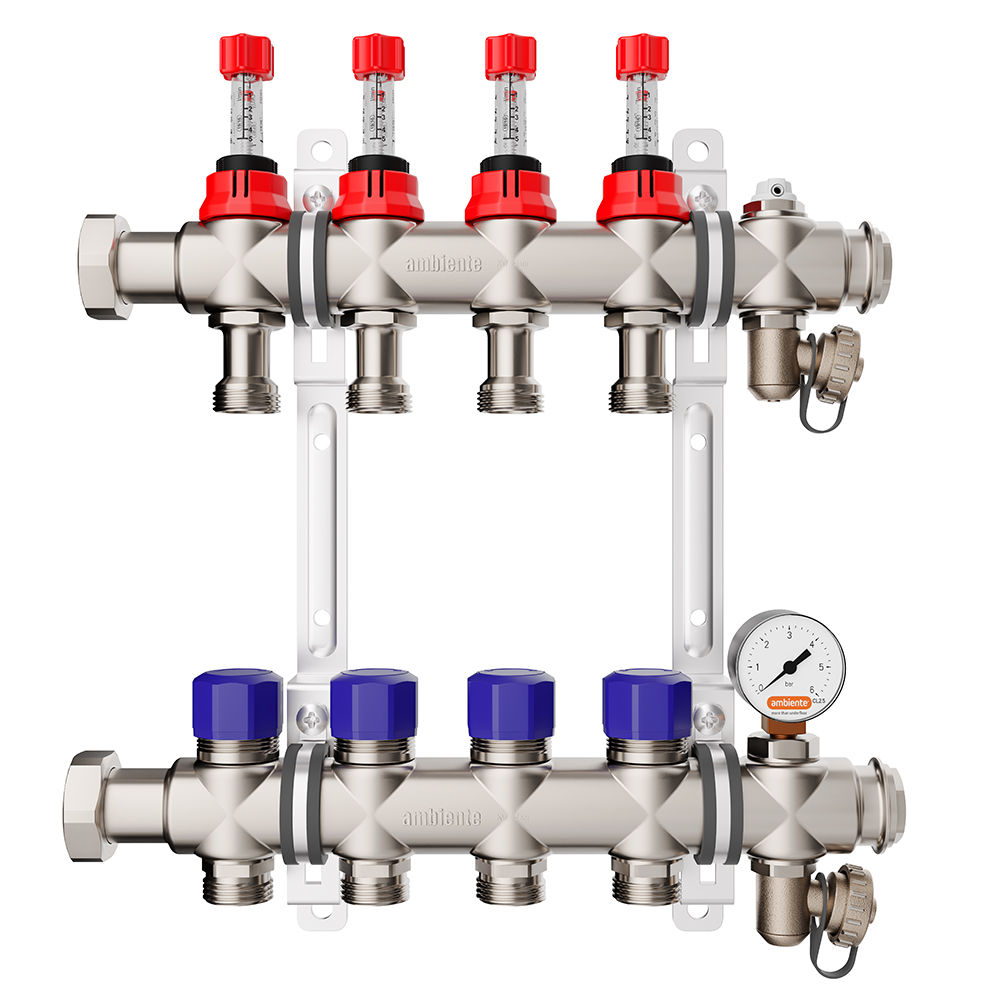

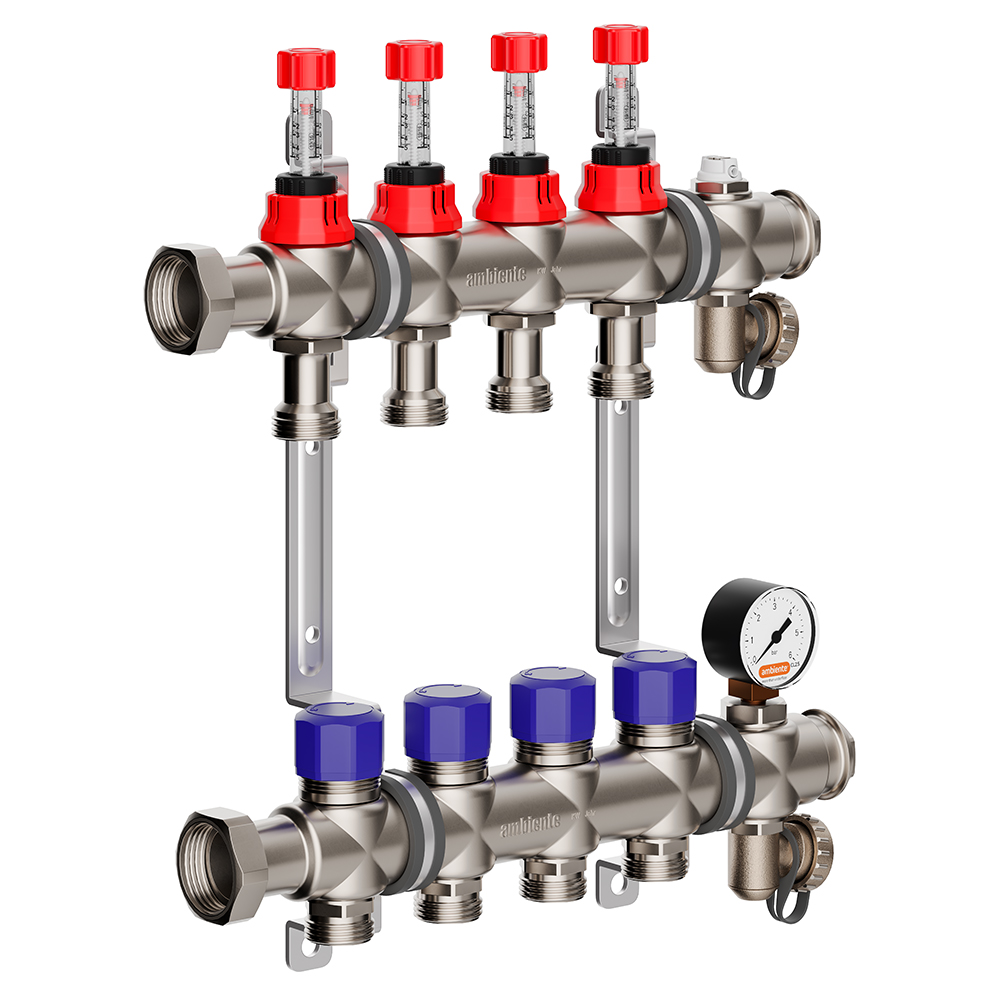

Stainless Steel Underfloor Heating Manifold – 1-14 Port

The Ambiente 413 Series Stainless Steel Underfloor Heating Manifold is a versatile, reliable solution for hydronic underfloor heating systems. Available from 1 to 14 ports, it comes pre-assembled with essential components, including fill/drain valves, a pressure gauge, and mounting brackets.

Compatible with both pump/blender units and centrally blended/pumped heat sources, these manifolds provide a reliable and efficient solution for residential and commercial heating setups.

These underfloor heating manifolds are manufactured using pressed stainless steel and undergoes rigorous quality assurance checks. Post-production, every manifold is factory-tested to 6-bar pressure to ensure reliability (typical operating pressures are under 3 bar).

Compatible with all 4 pipe types:

• AmbiFlex® P12 Pipe
• AmbiFlex® P16 Pipe
• Traffipipe® T16
• AmbiFlex® M16 Pipe

Key Features:

• Stainless Steel Manifold
• ¾” BSP Manifold take offs
• 1” Manifold bar connections – for ball valves or CircoMax Pumpsets
• Compact port layout – meaning manifolds fit in smaller spaces

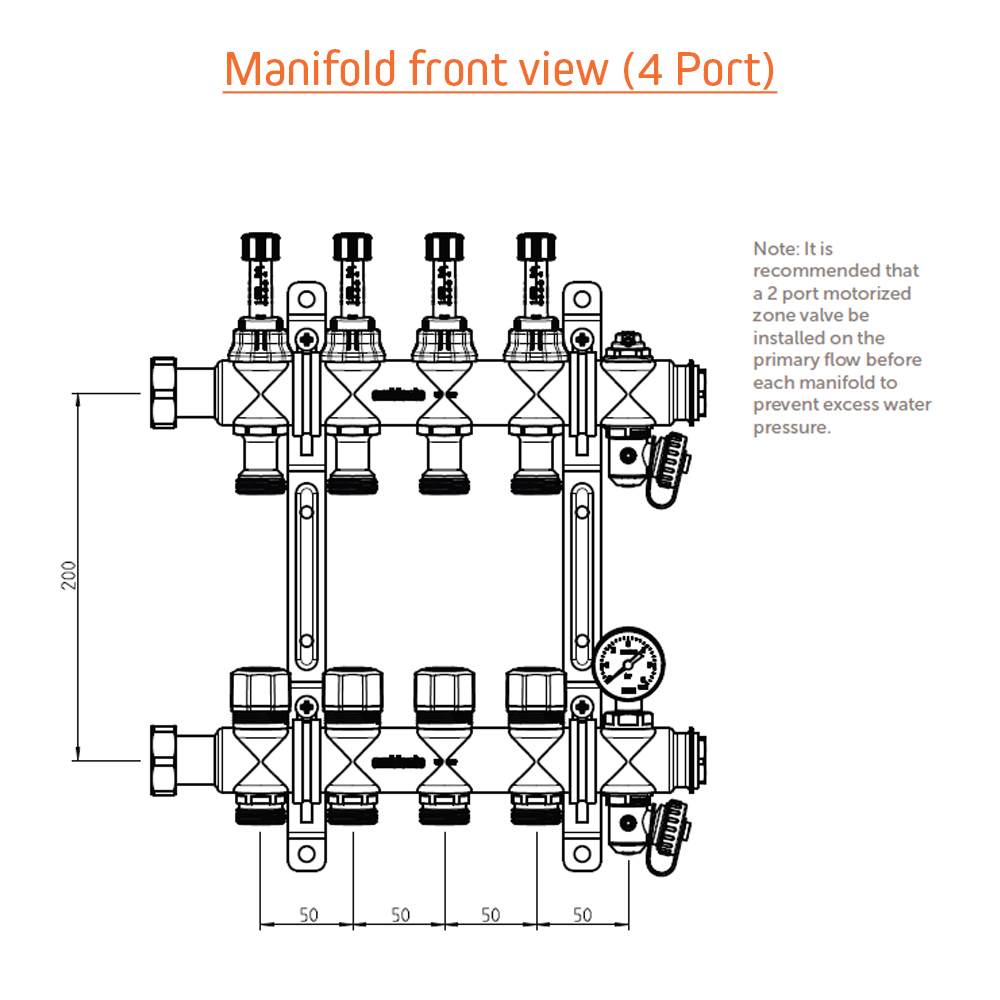

• 200mm Centre bar design
• The most robust/accurate flow meters in its category
• Lightweight as mostly stainless-steel components
• Manual air vent and pressure gauge

Efficient, durable, and easy to install, the Ambiente Stainless Steel Underfloor Heating Manifold is the perfect choice for residential and commercial heating systems.
