OverDeck® 20 UFH System Panel – 1200mm x 600mm x 20mm

The OverDeck® 20 UFH System Panel is a low-profile underfloor heating solution designed for retrofit projects where floor build-up height is critical. At just 20mm thick, this lightweight panel delivers exceptional performance without compromising heat output.

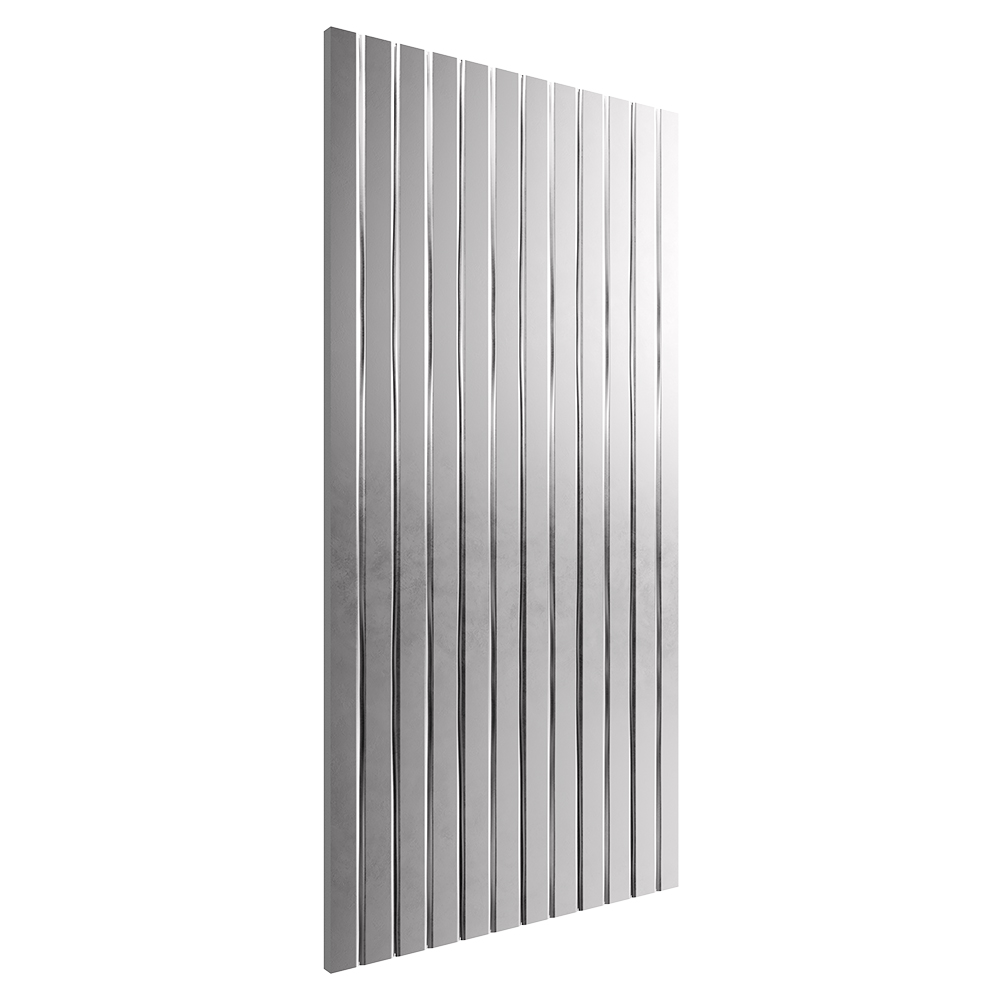

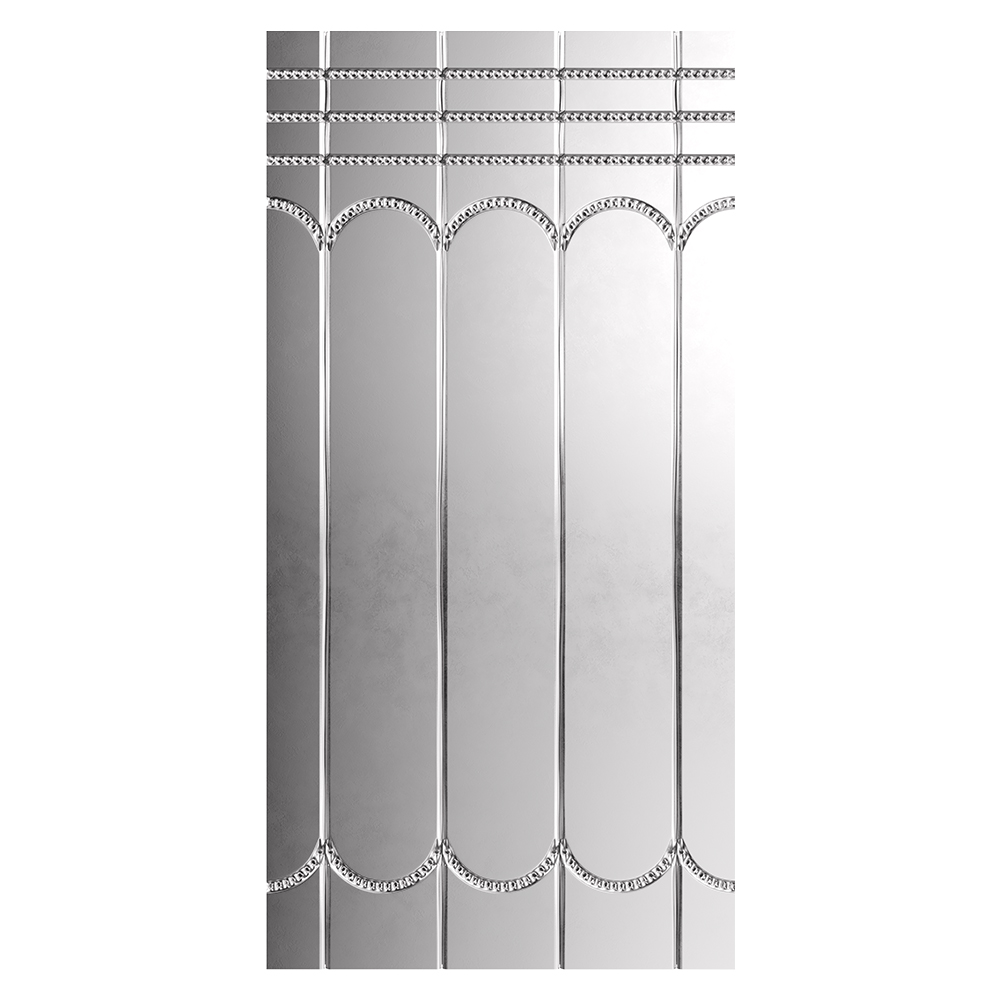

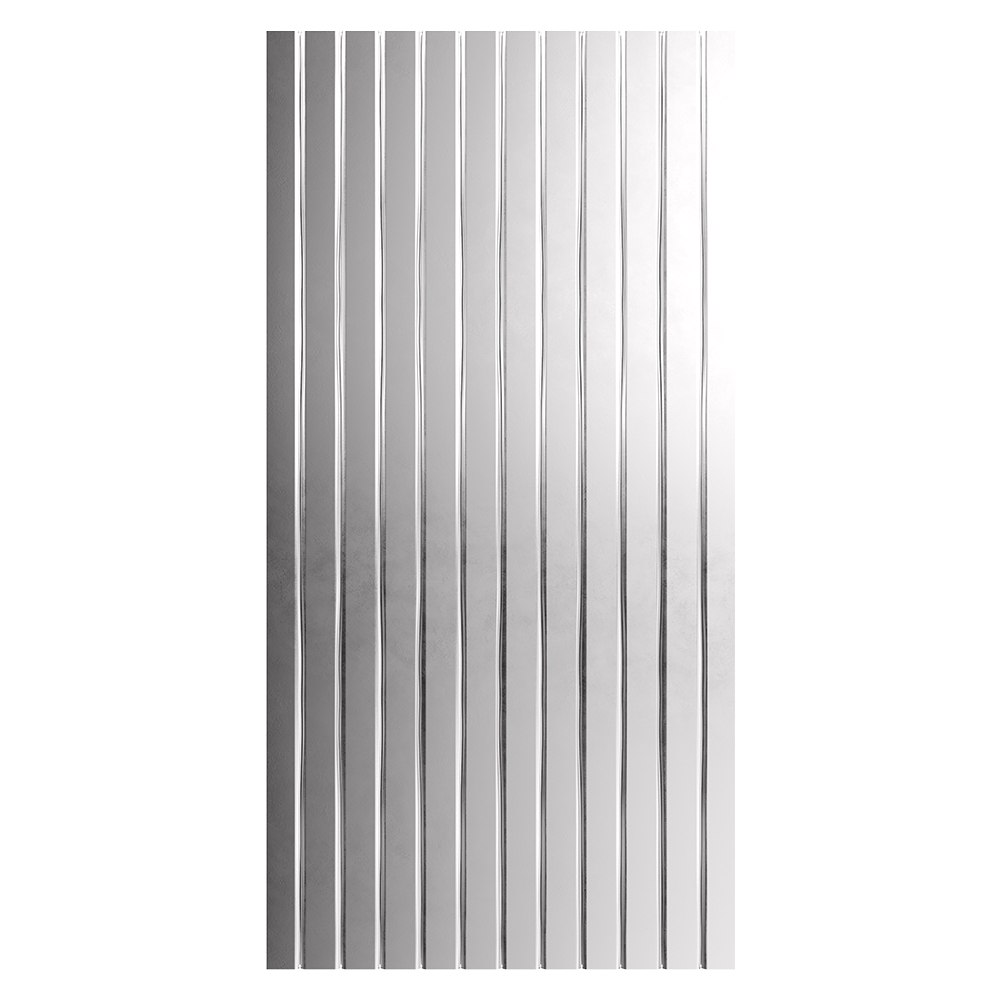

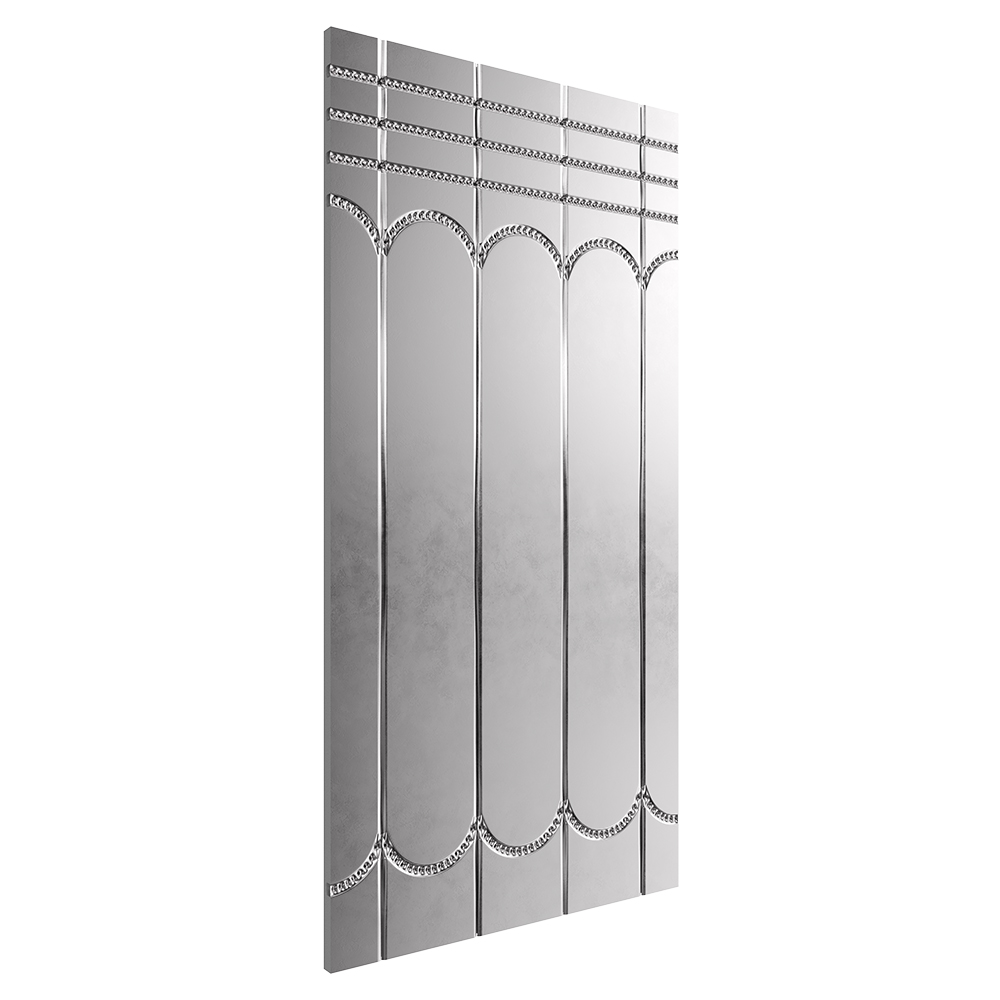

Available in Universal Panel and Highway Panel variants, the system features pre-grooved XPS insulation with aluminium foil facing for maximum heat distribution. Compatible with both suspended and solid floors, it requires a structural, level subfloor for optimal support.

The 1200mm x 600mm x 20mm panels (0.72m² coverage) accommodate 16mm UFH pipe with precision-engineered grooves and offer high compression strength (400 kPa) for long-term durability.

Key Features:

• Just 20mm Build-Up Height – Perfect for retrofit projects
• Pre-Grooved XPS Insulation – Secure 16mm pipe positioning
• Aluminium Foil Facing – Enhanced heat distribution
• Highway & Universal Panel Options – Choose your preferred variant
• High Compression Strength – 400 kPa XPS insulation

Compatible Floor Coverings:

• Timber (15mm+) – Direct installation
• Tiles/Carpet/LVT – Over intermediate flooring board

Installation: Cover the entire floor area with panels, adding battens at thresholds and perimeters as needed.

Part of our Low Profile Underfloor Heating range, ideal for renovations where space is at a premium.
