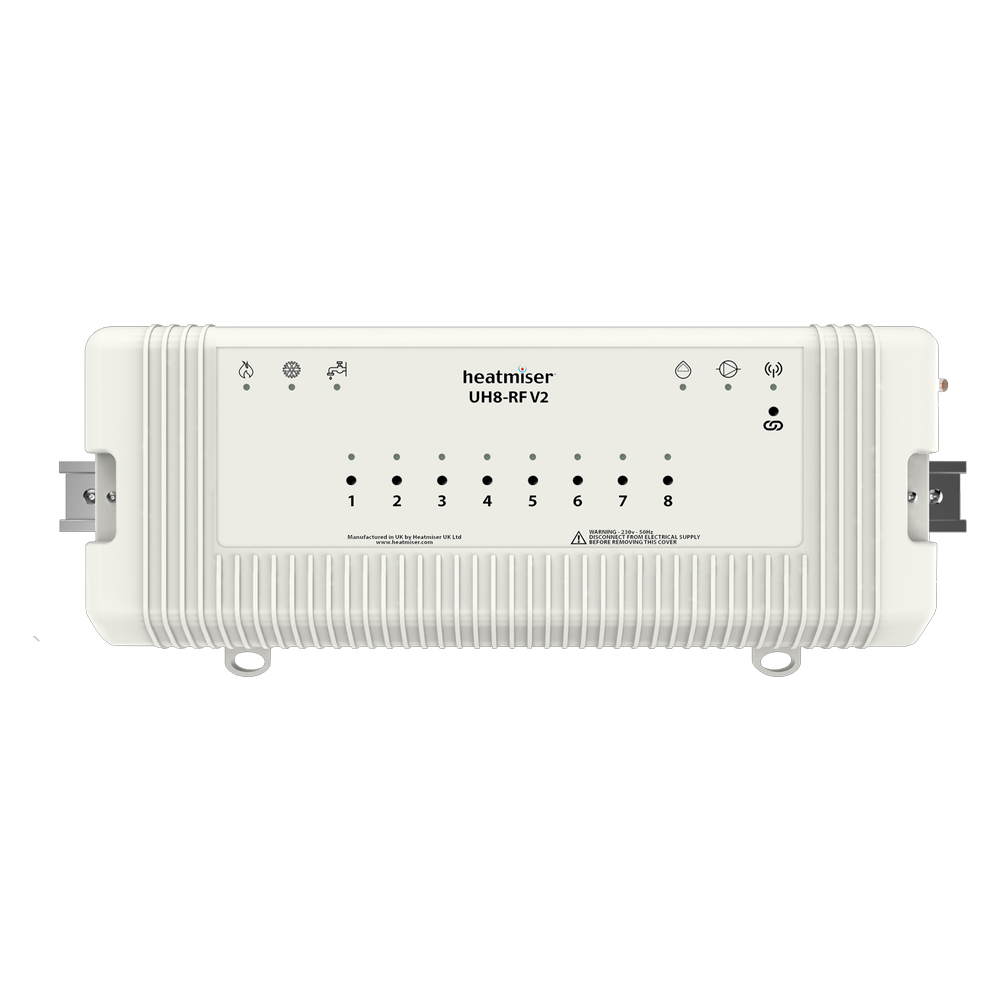

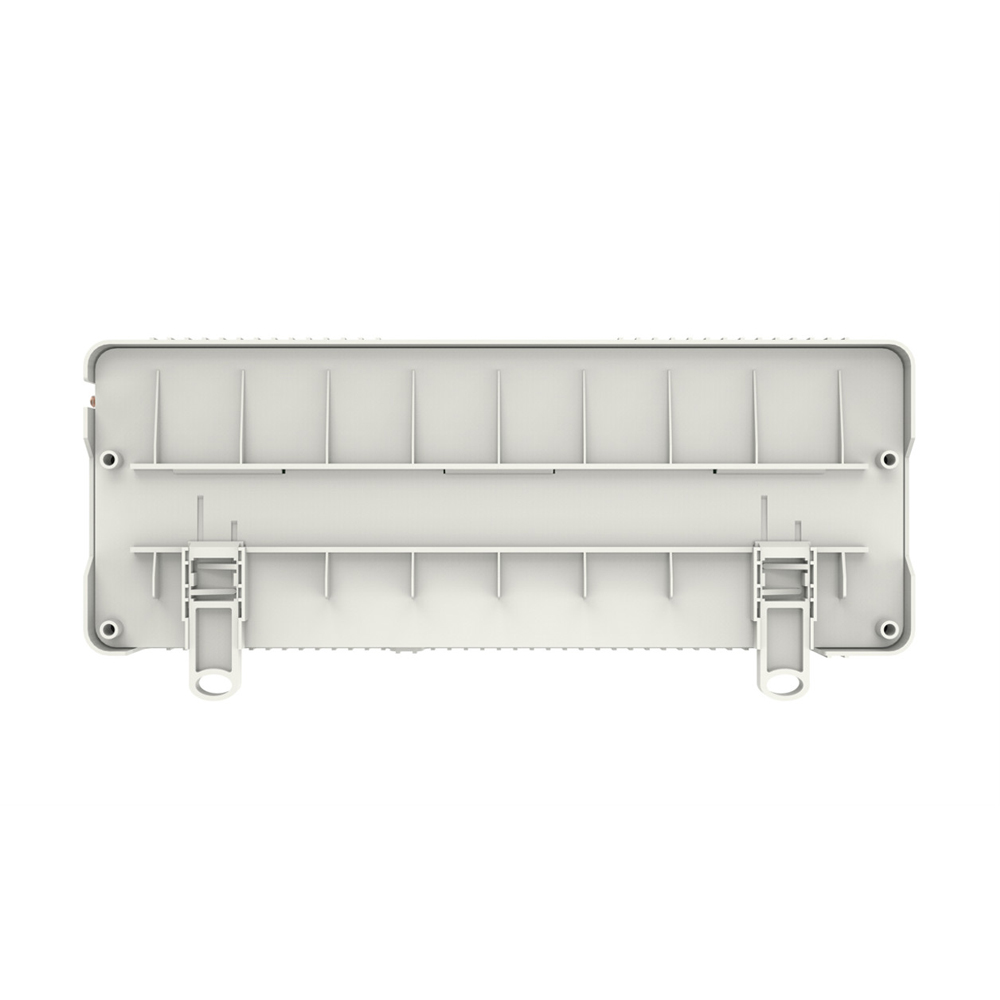

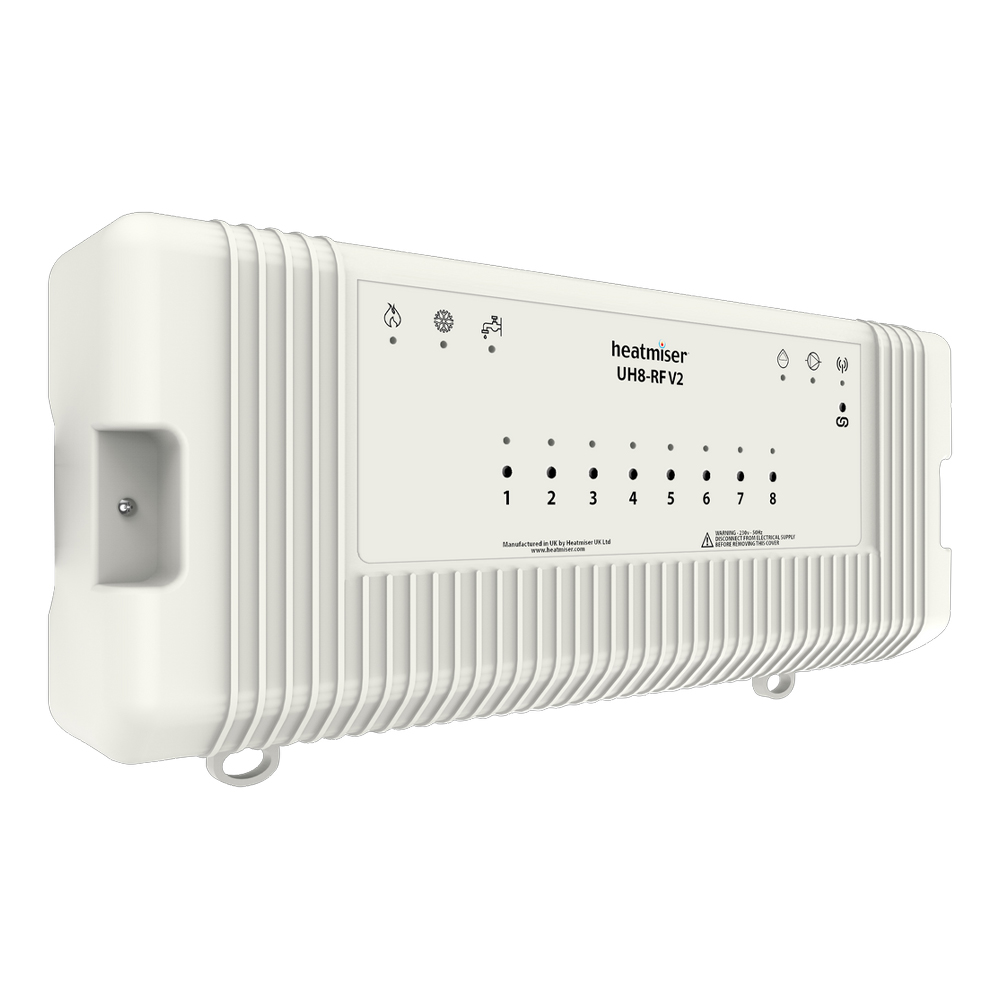

Heatmiser UH8-RF V2 8-Zone Wireless Wiring Centre

The Heatmiser UH8-RF V2 is a versatile wireless wiring centre designed to manage up to eight heating zones from a single central hub. Ideal for underfloor heating and multi-zone radiator systems, it works seamlessly with Heatmiser Slimline-RF and NeoAir thermostats, controlling actuators, pumps, valves and boilers while simplifying installation and system management.

Key Features

• Zone Control: Manages up to 8 separate heating zones
• Wireless Integration: Works with Slimline-RF and NeoAir thermostats
• Outputs: 230V for actuators, dedicated pump and valve control
• Boiler Management: Volt-free connection for most domestic boilers
• Hot Water: Integrated hot water cylinder control
• Mounting: Wall or DIN rail compatible
• Reliability: Wireless fail-safe function ensures continued operation

How it Works

Installed next to your heating manifolds, the UH8-RF V2 detects calls for heat from any connected thermostat and activates the relevant zone actuators, pump, and valve. Its volt-free boiler output ensures compatibility with most heating systems, while optional external aerials enhance signal strength in larger or signal-restricted properties.

Technical Specification

• Zones: 8
• Actuator Outputs: 230V AC
• Thermostat Connection: Wireless RF
• Boiler Control: Volt-free output
• Hot Water Output: Yes
• Pump/Valve Output: Yes
• Mounting: Wall or DIN rail
• Dimensions: 384 × 148 × 60 mm
• Protection: IP20

Download Datasheet

Frequently Asked Questions (FAQs):

Q: Does it support hot water control?
A: Yes, it includes a dedicated hot water output in addition to zone heating.

Q: Which thermostats can I use?
A: Compatible with Heatmiser Slimline-RF v3 and neoAir v3 wireless thermostats.

Q: How many actuators per zone?
A: Up to six actuators can be connected per zone.
