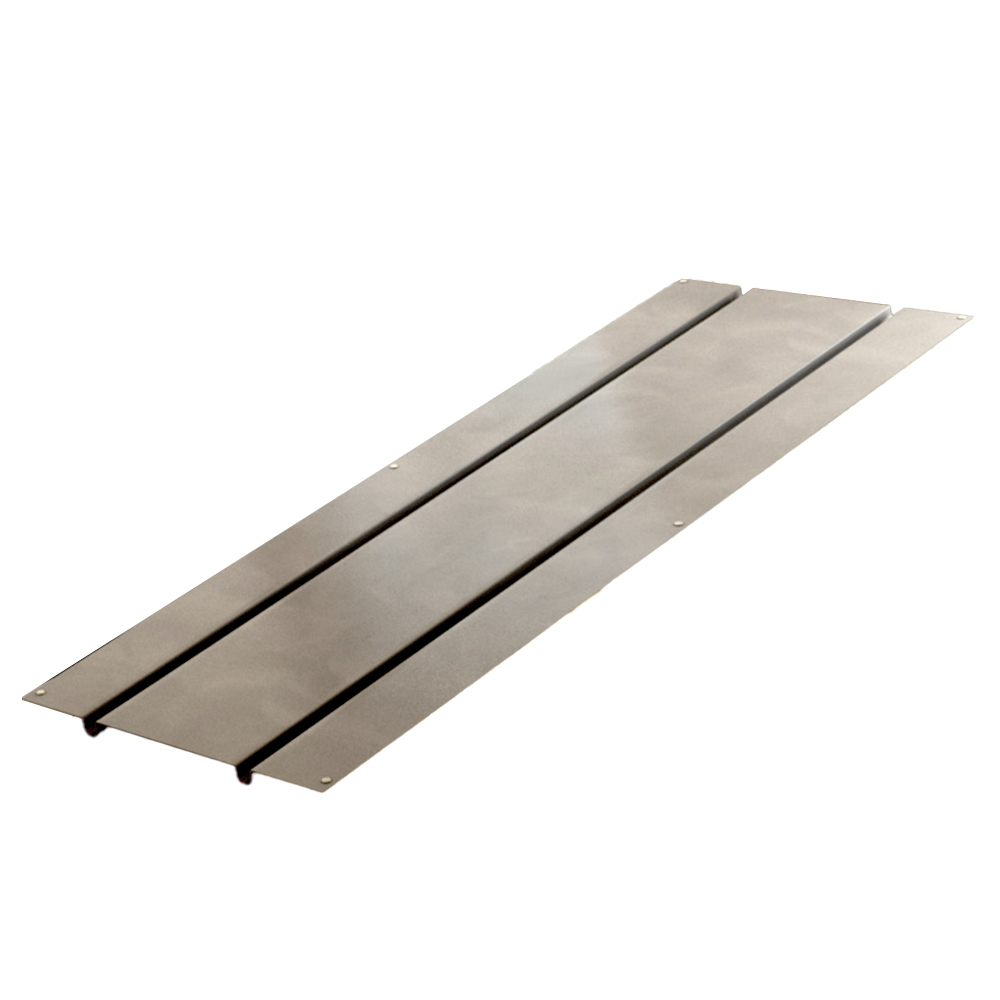

OverPlate® UFH Aluminium Spreader Plate – 1000mm x 390mm x 0.5mm

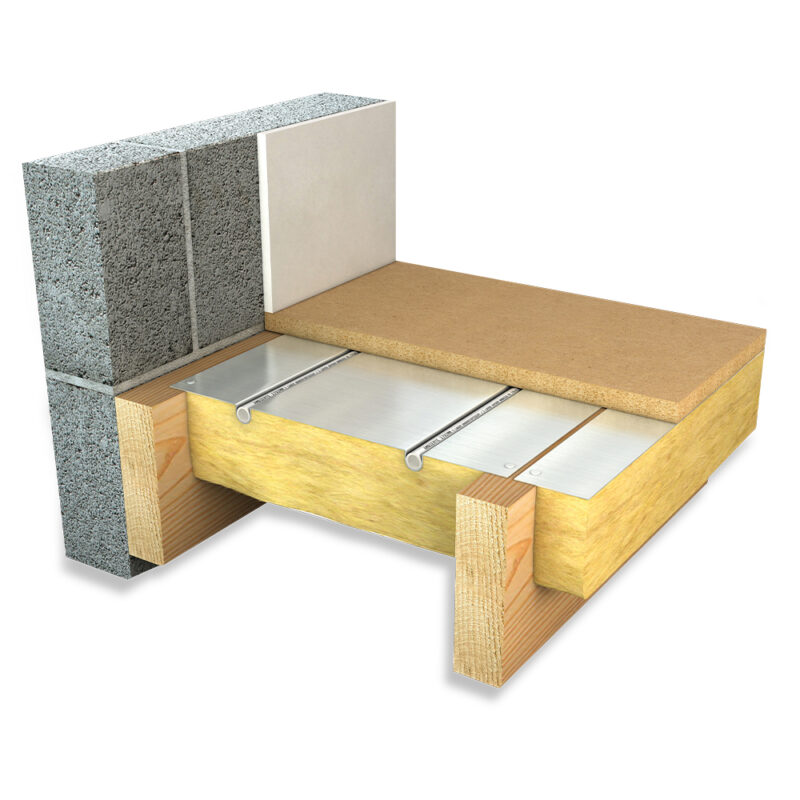

The OverPlate® Aluminium Spreader Plate is a high-performance underfloor heating solution designed for suspended timber and joisted floors. Manufactured from 0.5 mm high-conductivity aluminium, each plate securely holds 16mm UFH pipework in pre-formed grooves to ensure rapid, even heat distribution with minimal floor build-up. Before installation, the joist void should be insulated with mineral wool or rigid board insulation fitted tightly against the underside of the plates to maximise heat output and minimise downward heat loss.

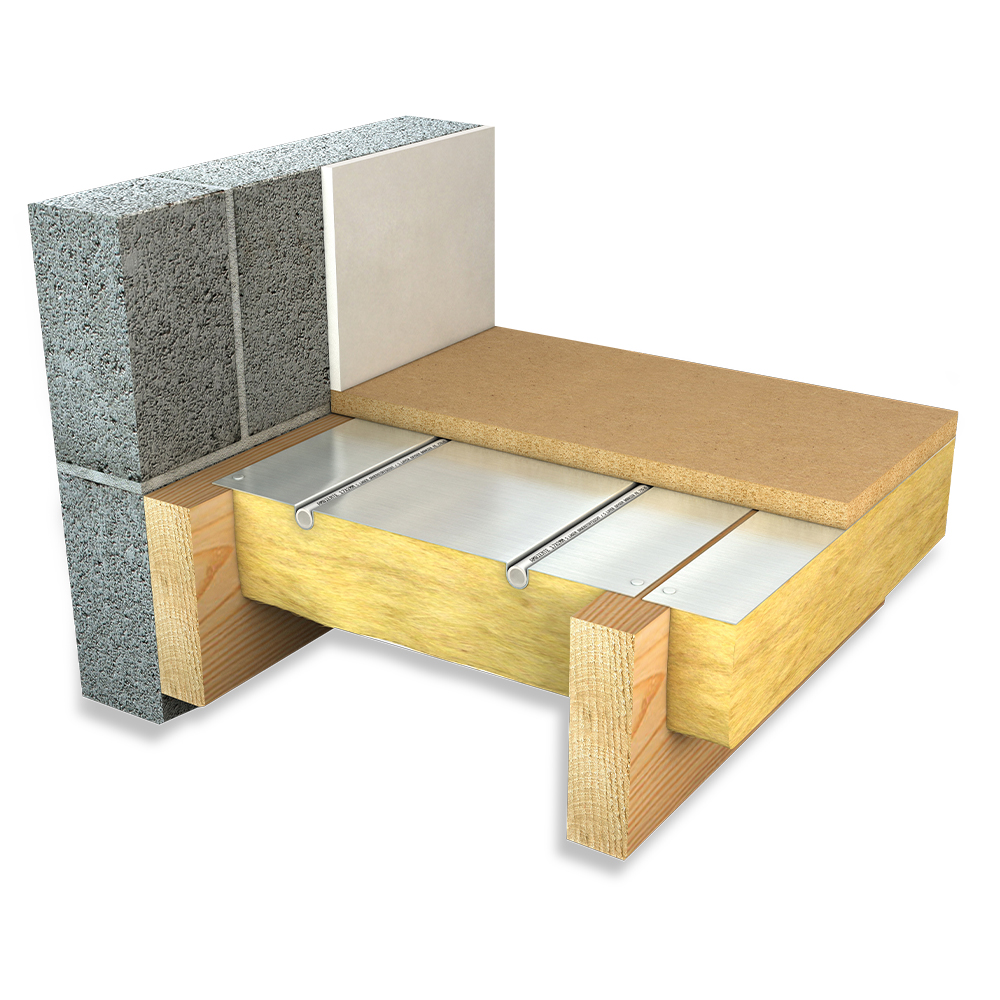

Fixed to either side of the joist void, the plates are suitable for straight pipe runs and typically cover around 80% of the heated floor area. Their reflective aluminium surface efficiently transfers heat upwards through the floor structure, delivering an impressive output of up to 53 W/m². Ideal for both retrofit and new-build projects, OverPlate provides a low-profile, responsive, and consistent heating solution for a wide range of floor finishes.

Key Features:

• High-Conductivity Aluminium – Ensures rapid and even heat distribution
• Pre-Formed Pipe Channels – Secure and consistent 16 mm UFH pipe spacing
• Low-Profile Design – Ideal for retrofit and suspended timber floor systems
• Quick Installation – Simple to fit with no screed or complex fixings required

Why choose OverPlate?

OverPlate combines the proven performance of aluminium spreader/diffuser plates with a system-friendly design for fast installation, reliable pipe retention and efficient heat distribution – making it an excellent choice for installers and specifiers seeking predictable UFH performance in timber floors.

Part of our range of Timber Joisted Underfloor Heating
