AmbiCastellated/Pro UFH System Panel – 1400mm x 800mm x 18.5mm

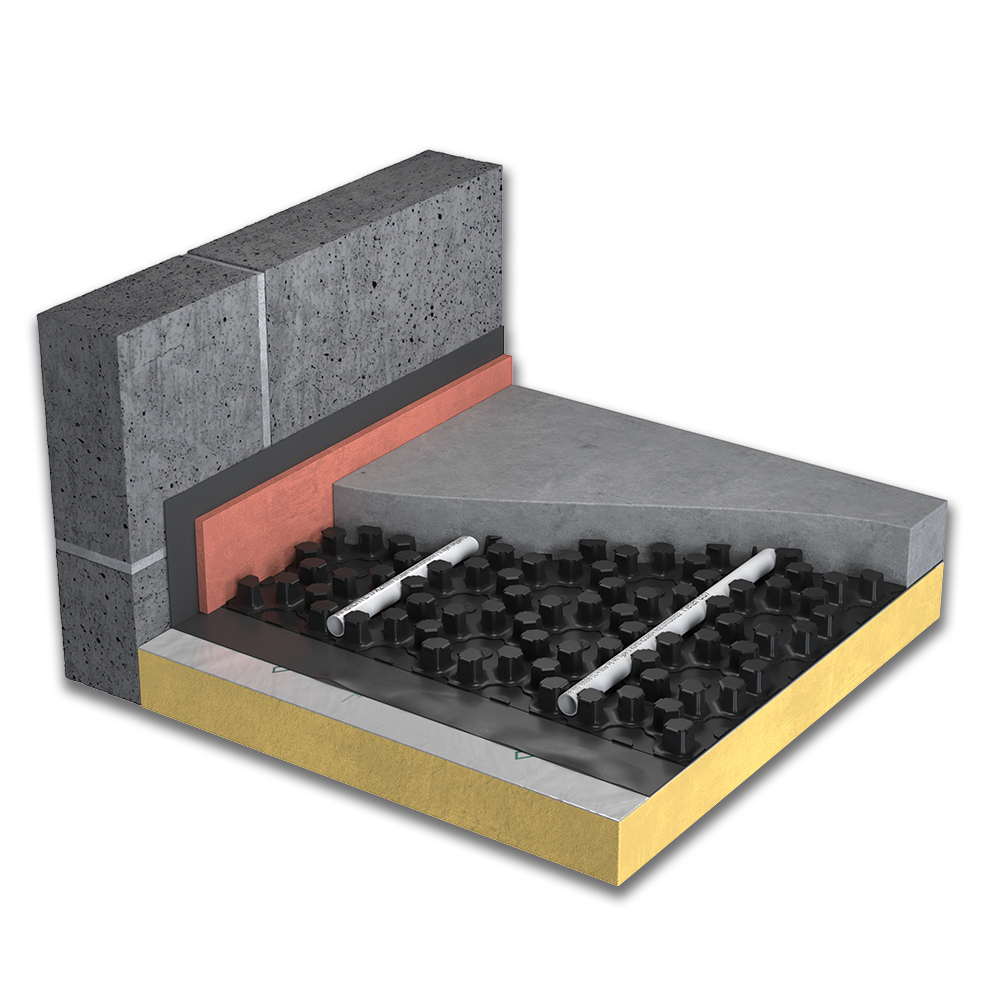

The AmbiCastellated Underfloor Heating Panel and its self-adhesive variant, AmbiCastellated® Pro, are high-performance solutions for screeded floor UFH systems. Designed for solid floors, these moulded plastic panels protect pipework prior to screeding and provide a simple, efficient method for pipe installation.

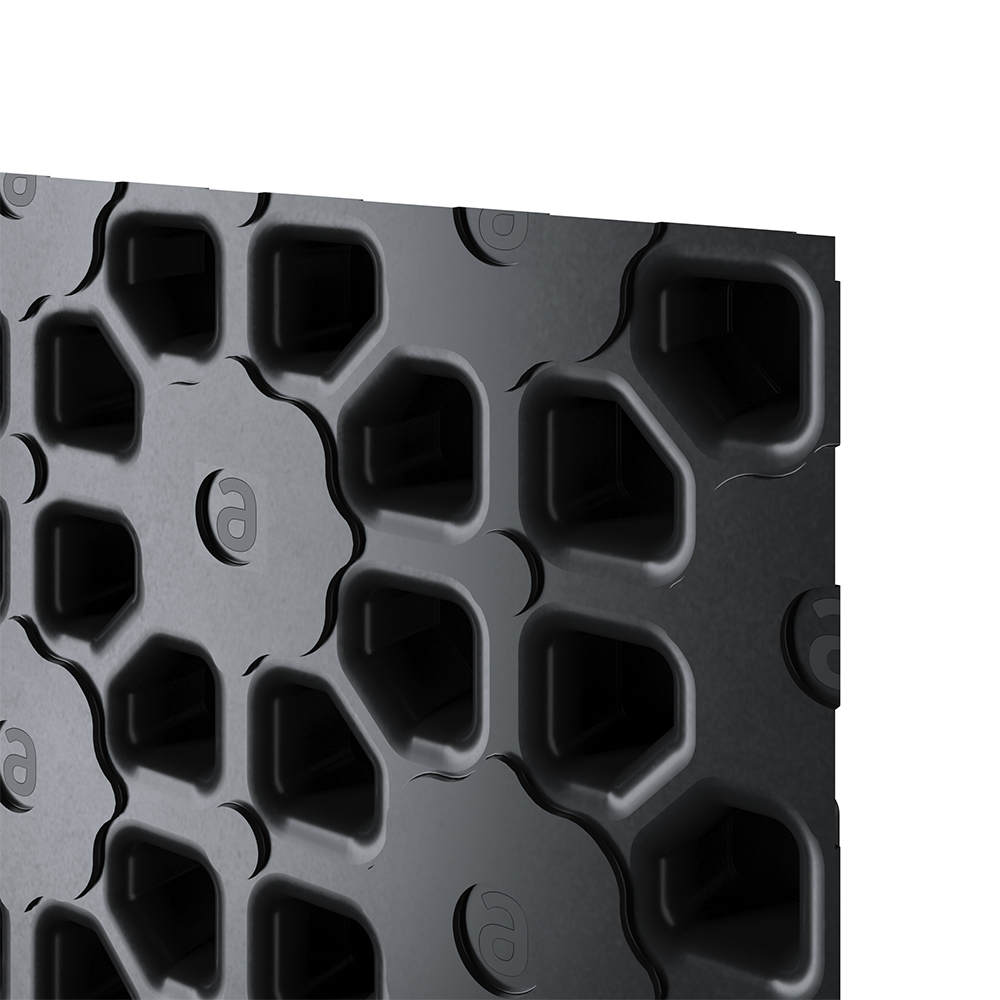

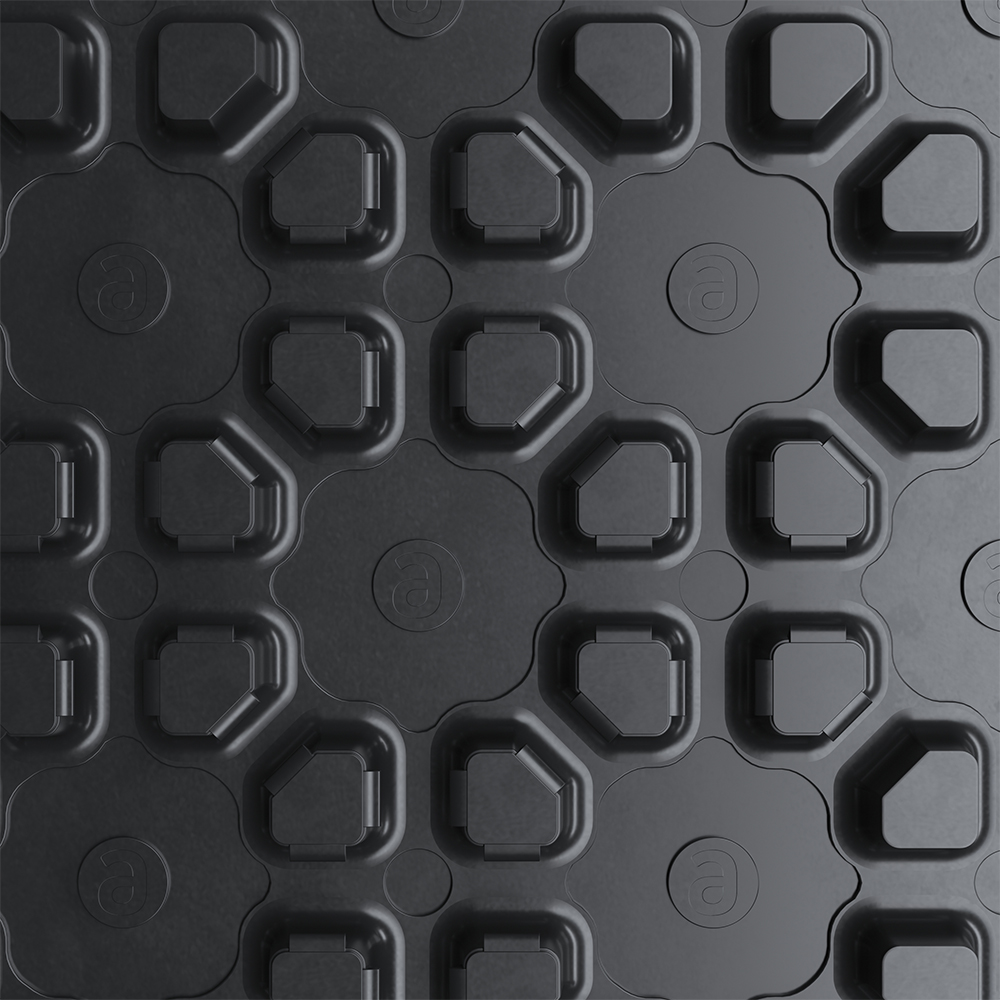

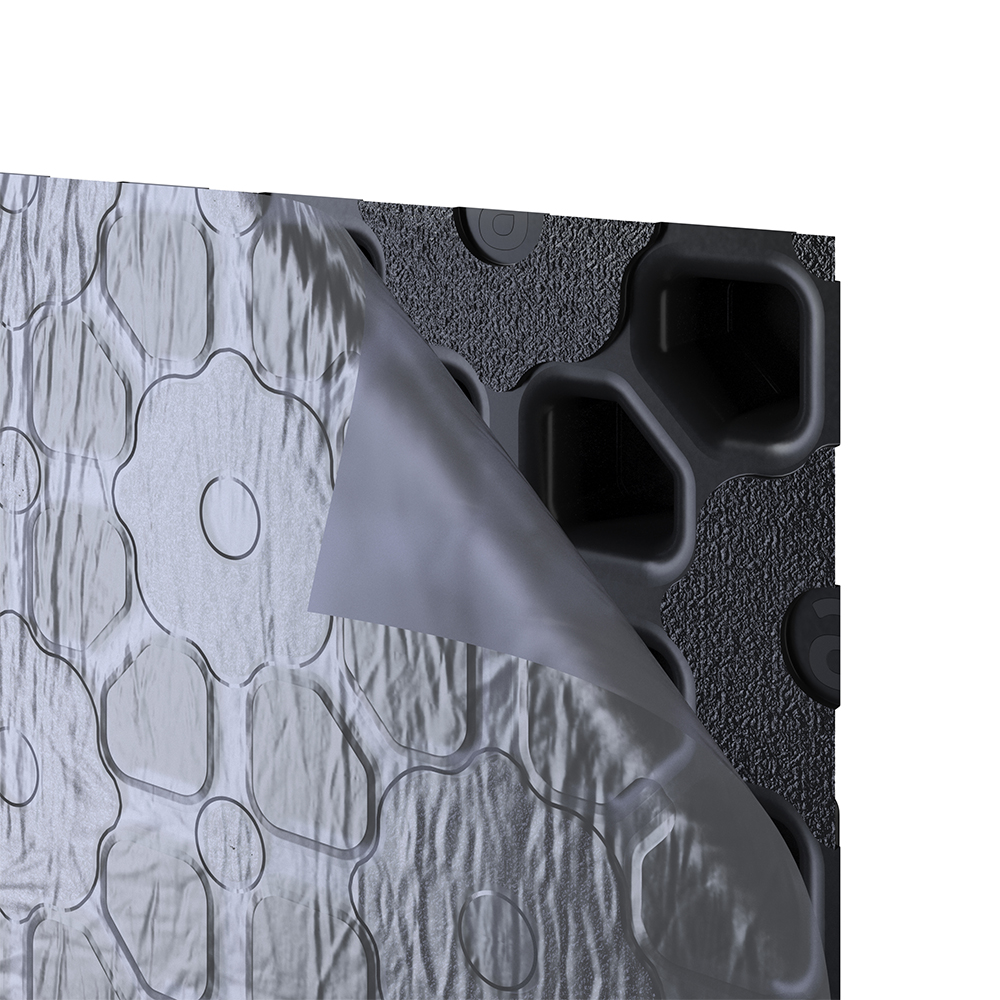

The panels feature a castellated design with ‘castles’ spaced at 50mm intervals, providing consistent fixing points for a neat and secure pipe layout. The AmbiCastellated Pro includes a self-adhesive backing, allowing the panel to stick directly to insulation, preventing pipe movement and simplifying installation.

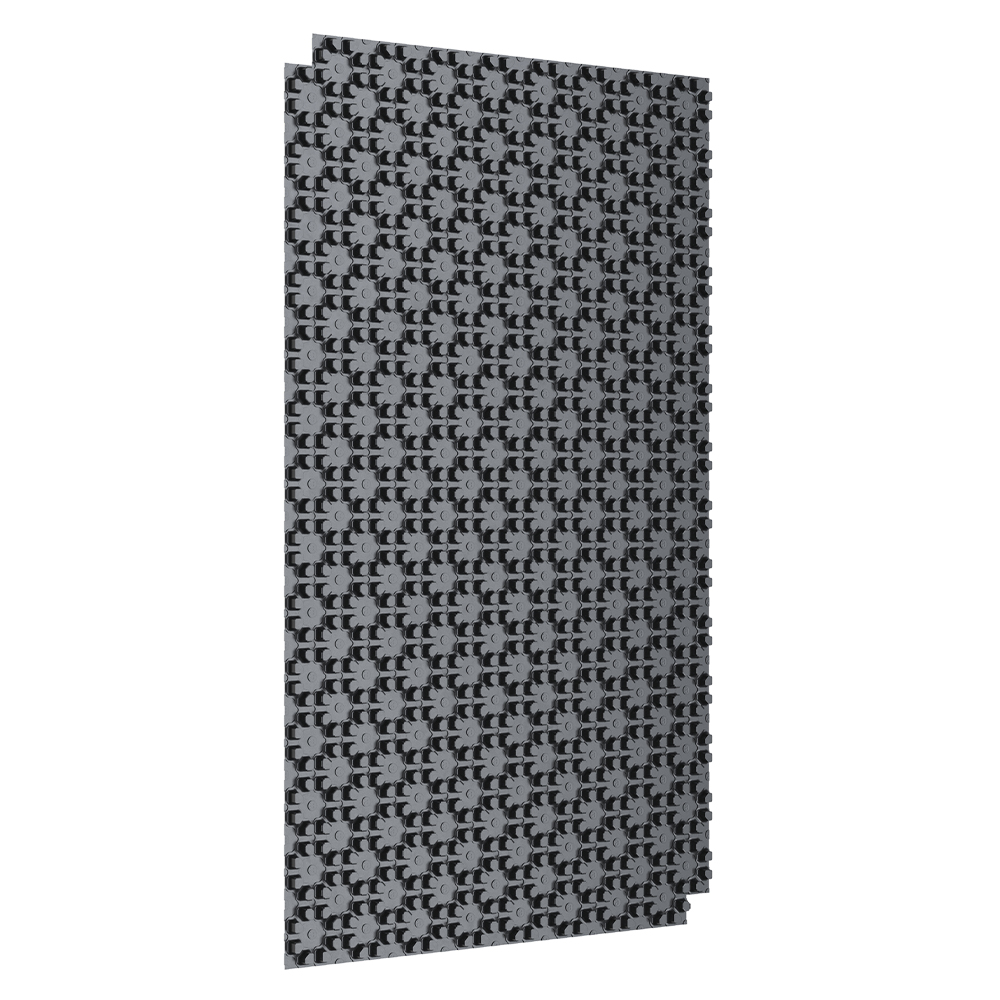

With a panel size of 1400mm x 800mm x 18.5mm (1.12m² coverage) and compatibility with 16 x 2mm UFH pipe, the AmbiCastellated range supports flexible pipe centres of 100, 150, 200, or 250mm, providing reliable heat output up to 122 W/m² under standard test conditions.

Ideal for both new-build and renovation projects, these panels improve installation speed, protect pipework, and ensure efficient, even heat distribution across screeded floors.

Key Features:

• Plain or Self-Adhesive Options – AmbiCastellated or AmbiCastellated Pro

• Designed for Solid Floors – Ideal for screeded installations

• Pipe Centres – 100, 150, 200, 250mm

• Panel Size – 1400mm x 800mm x 18.5mm (1.12m² coverage)

• Pipe Compatibility – 16 x 2mm UFH pipe

• Quick & Efficient Installation – Reduces labour and installation time

• Heat Pump Ready – Compatible with low-temperature heating systems

• Lightweight Construction – 2.1 kg/m² plus insulation and screed

Whether installing a new screeded floor UFH system or upgrading an existing setup, the AmbiCastellated range delivers durability, efficiency, and simplicity in one reliable panel system.
