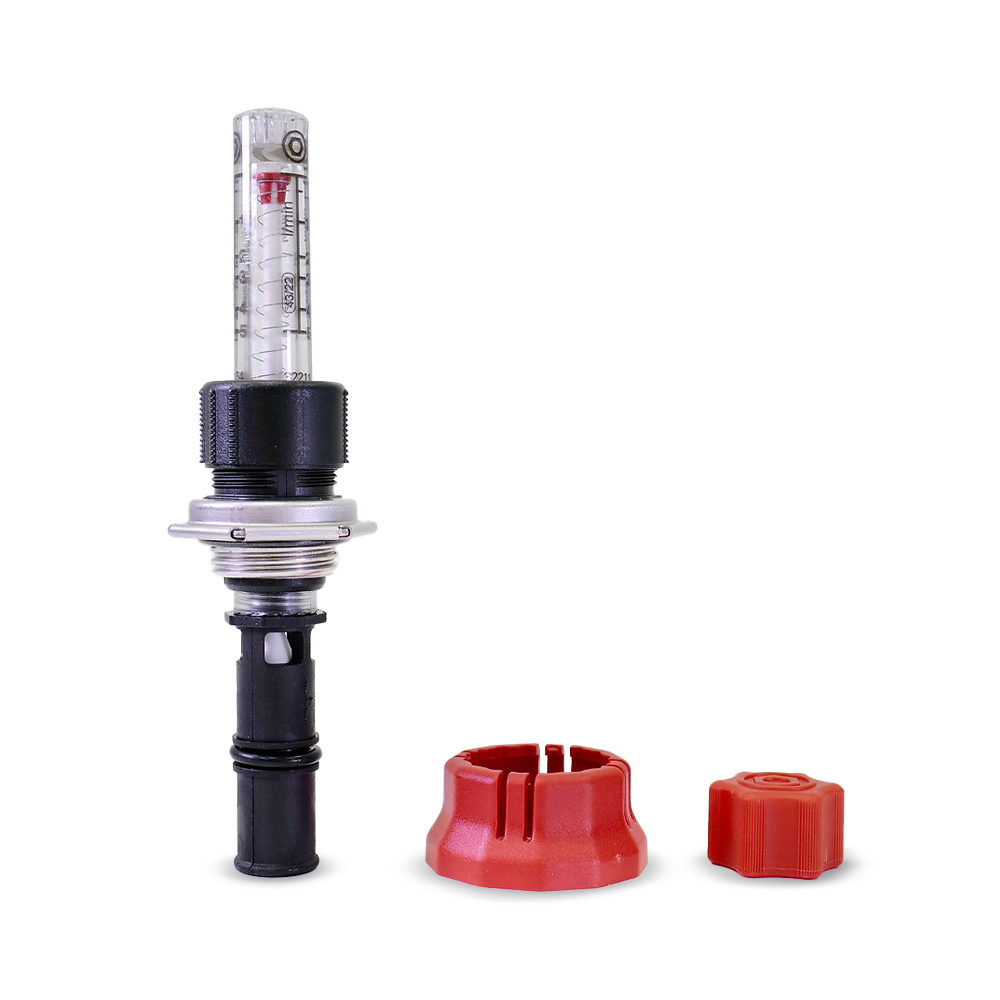

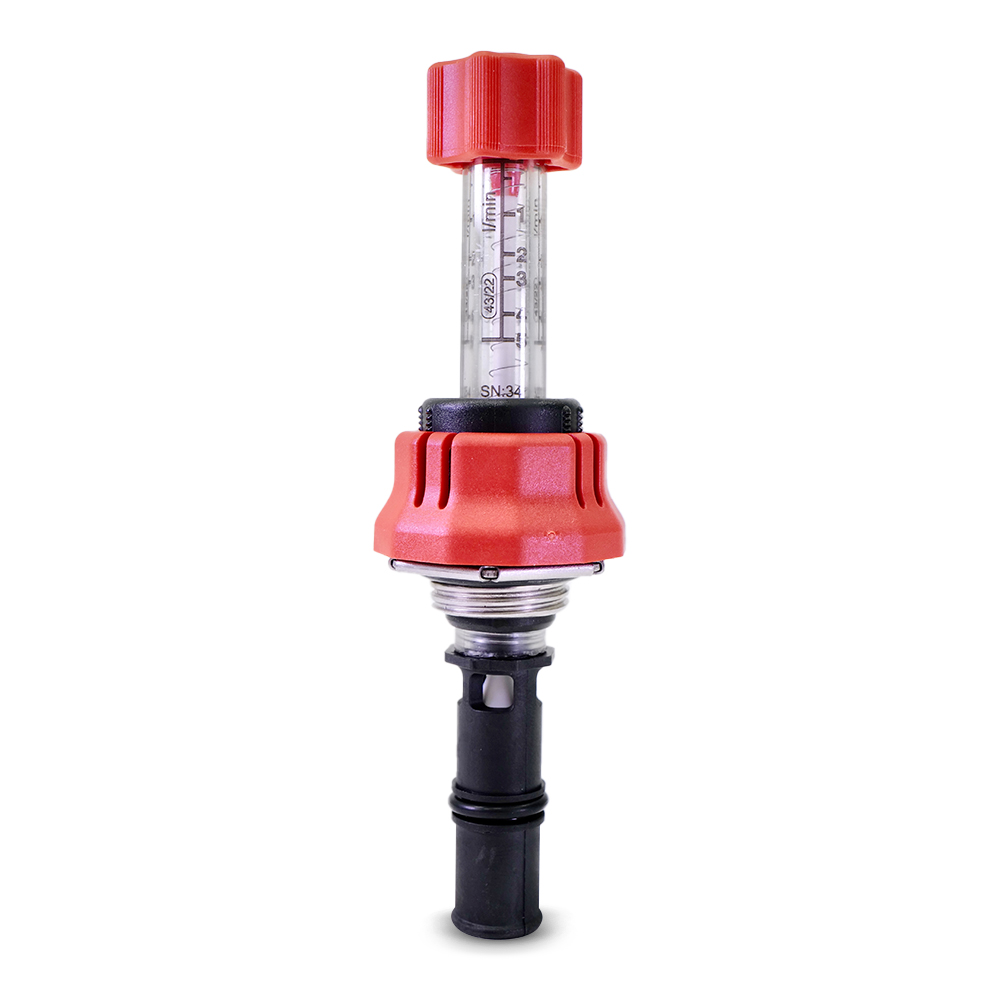

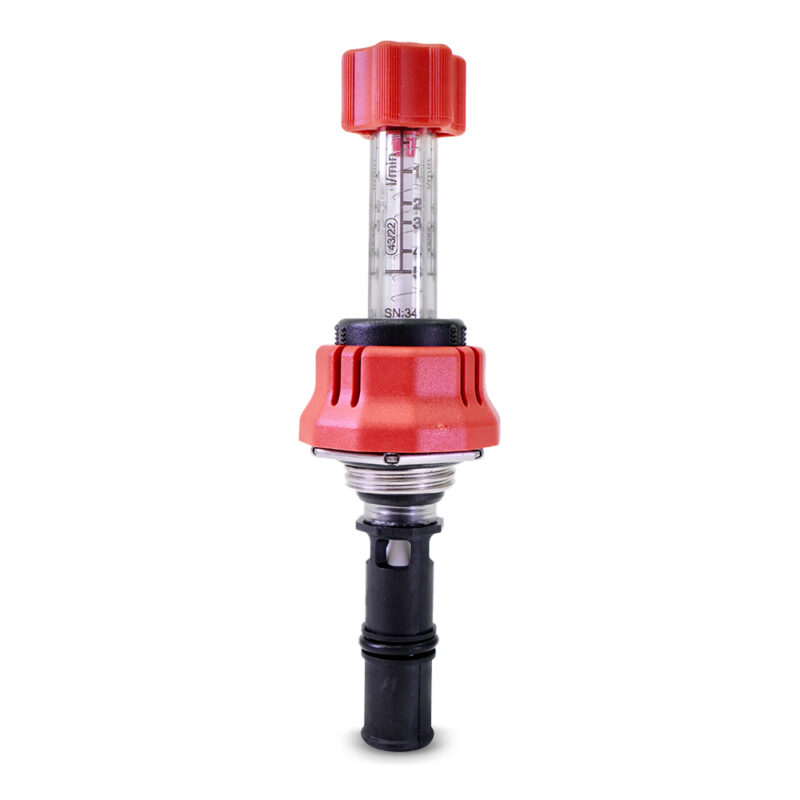

Flow Meter Replacement for UFH Manifold – 0-3Litre/Min

Upgrade your underfloor heating system with this Ambiente UFH Flow Meter, designed to deliver accurate regulation, clear indication, and reliable shut-off for each loop on your manifold flow bar. Engineered for performance and durability, this essential component ensures optimal flow distribution, helping you maintain efficiency and reduce running costs.

Key Features & Benefits:

• Accurate Flow Regulation – Precisely adjusts flow rates from 0-3L/min, ensuring balanced heat distribution across all UFH loops.
• Clear Visual Monitoring – Integrated glass flow scale allows for easy and accurate reading of flow rates.
• Built-In Shut-Off Mechanism – Isolate individual loops safely and effortlessly for maintenance by simply turning the spindle.
• High-Performance Design – Robust construction with Kvs value of 1.1m³/h and a maximum operating temperature of 105°C.
• Universal Compatibility – Features a ½” MBSP thread, making it compatible with most underfloor heating manifolds.

Technical Specifications:

• Flow range: 0-3 litres per minute
• Connection: ½” Male BSP thread
• Maximum operating temperature: 105°C
• Glass flow scale for precise measurement
• Integrated isolation valve

Perfect for underfloor heating installations requiring precise flow control and monitoring.
