TM4-TS 4-Channel Timeclock V2 white 230v – Heatmiser

The Ambiente TM4-TS 4-Channel Timeclock V2 programmer with four on/off times per channel with five/seven day operation. The programmer is designed to link with a UH3 wiring centre but can equally be used to replace standard programmers. Programmers are often difficult to understand but the touch screen feature makes this unit very simple to use.

Normal Run Mode:

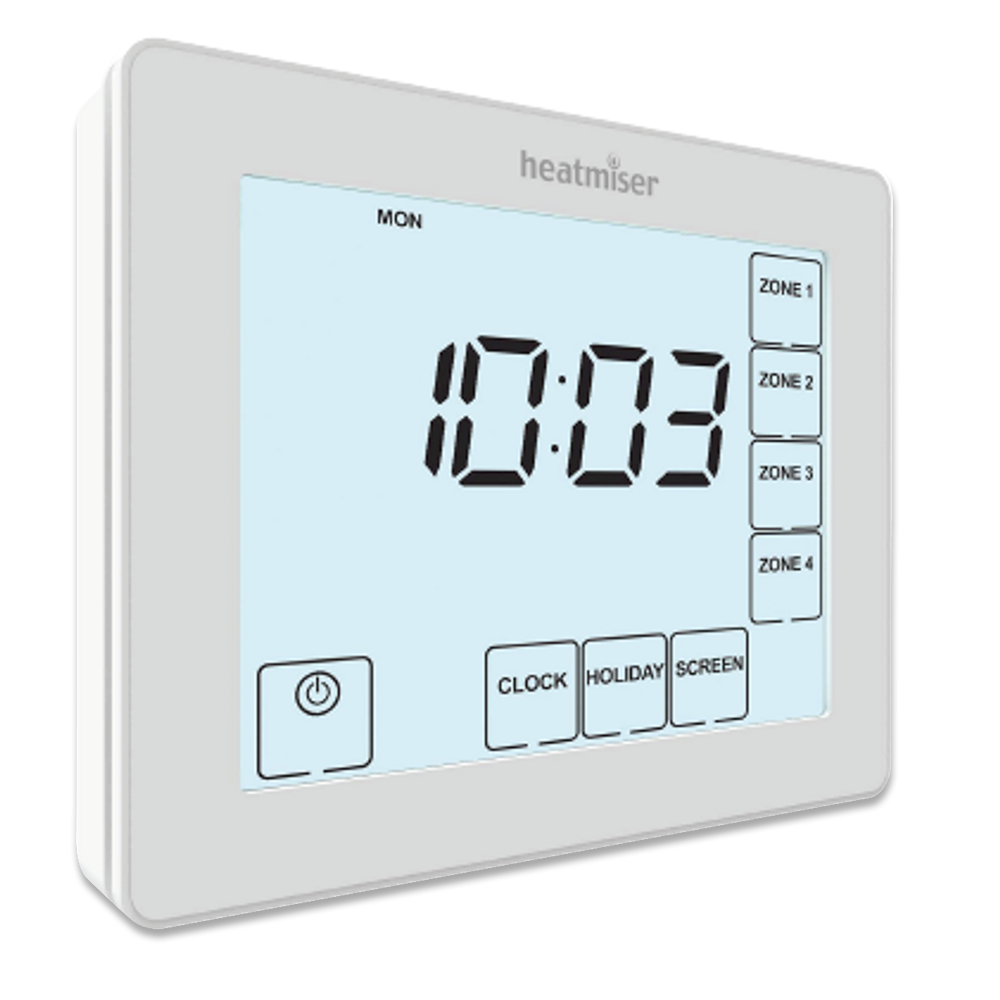

In normal run mode, the time clock will display the current time. It can also be set to show the status for a particular zone. To display the status of a zone, press Zone 1 – Zone 4. This screen will be displayed until you press Done and return to the main menu. The time clock has a 24-hour clock.

Programming a Holiday:
The time clock can be programmed to switch all zones off for a set number of days – ideal for when you are going away.

Selecting 5/2 Day or 7 Day Programming:
Each zone can be programmed to work in 5/2 (Weekday/ Weekend) or 7 Day mode.

Adjusting the Switching Times:
Each zone has 4 On/Off times.

Copy Function:
The Time clock has a copy function, enabling you to copy switching times from one zone to another.

Mode Select:
Each zone can operate in 3 modes:
Auto: The zone will work to the programmed switching times.
Off: The zone will switch off completely.
Constant: The zone will stay on indefinitely.

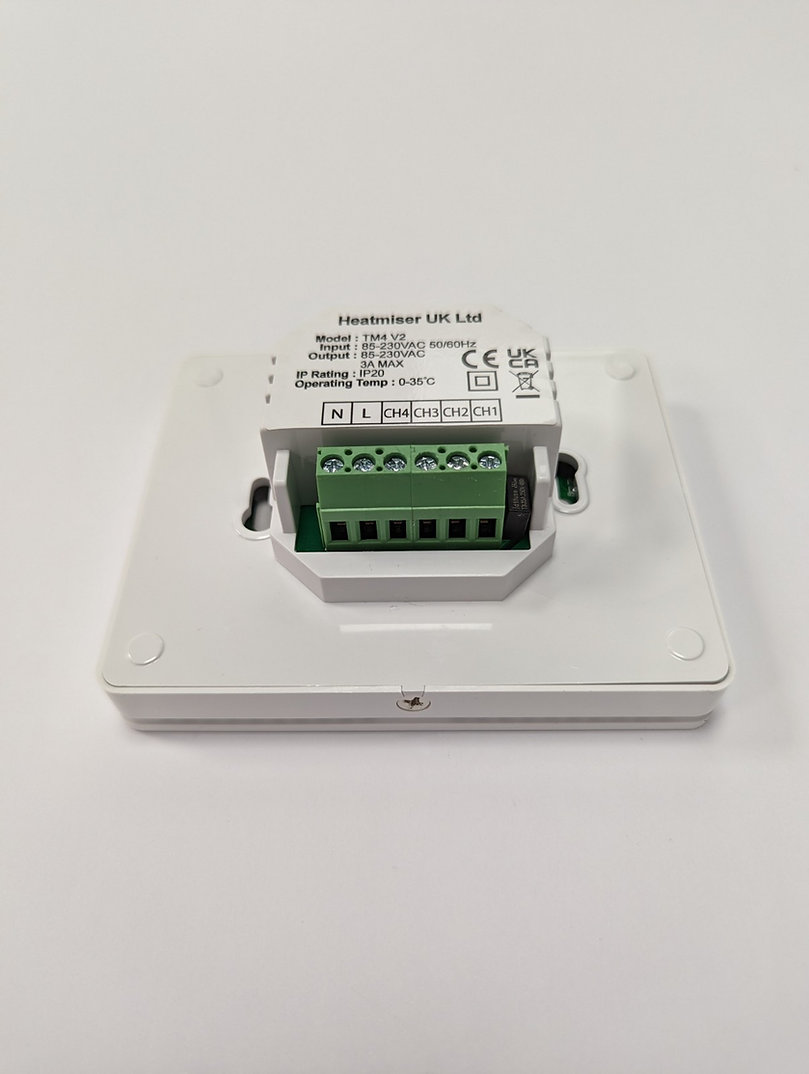

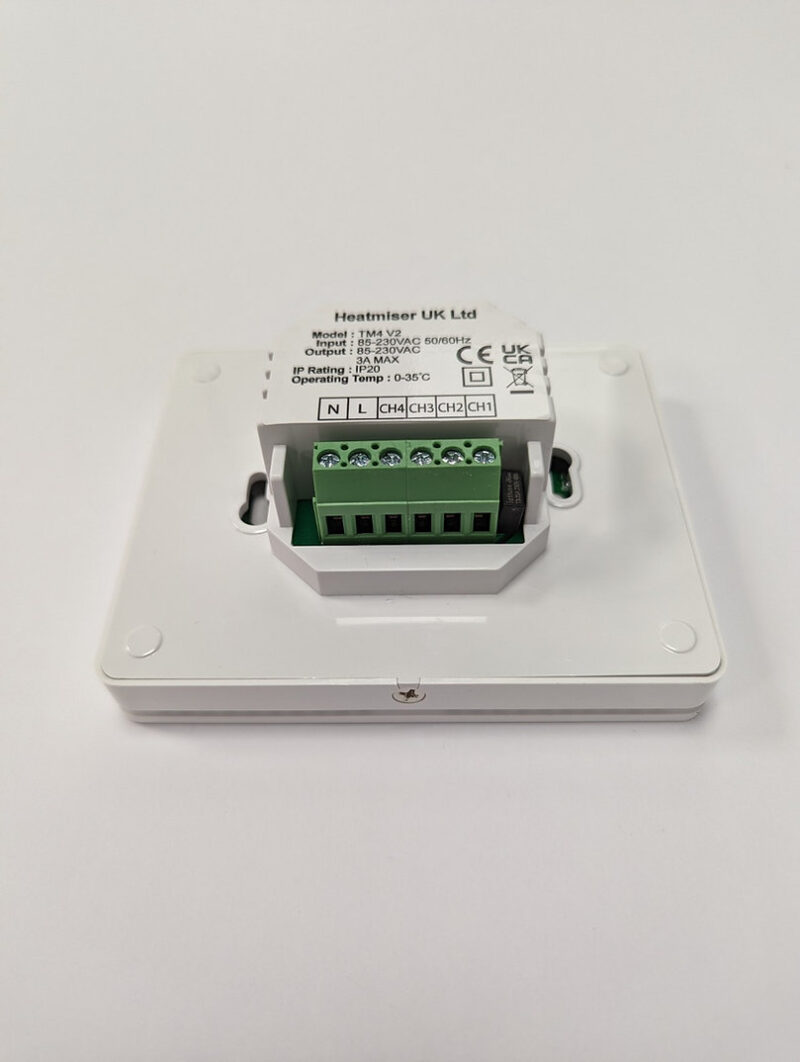

It is recommended that a 45mm back box is used with this unit to allow space for cables to all four channels.

Download Datasheet
