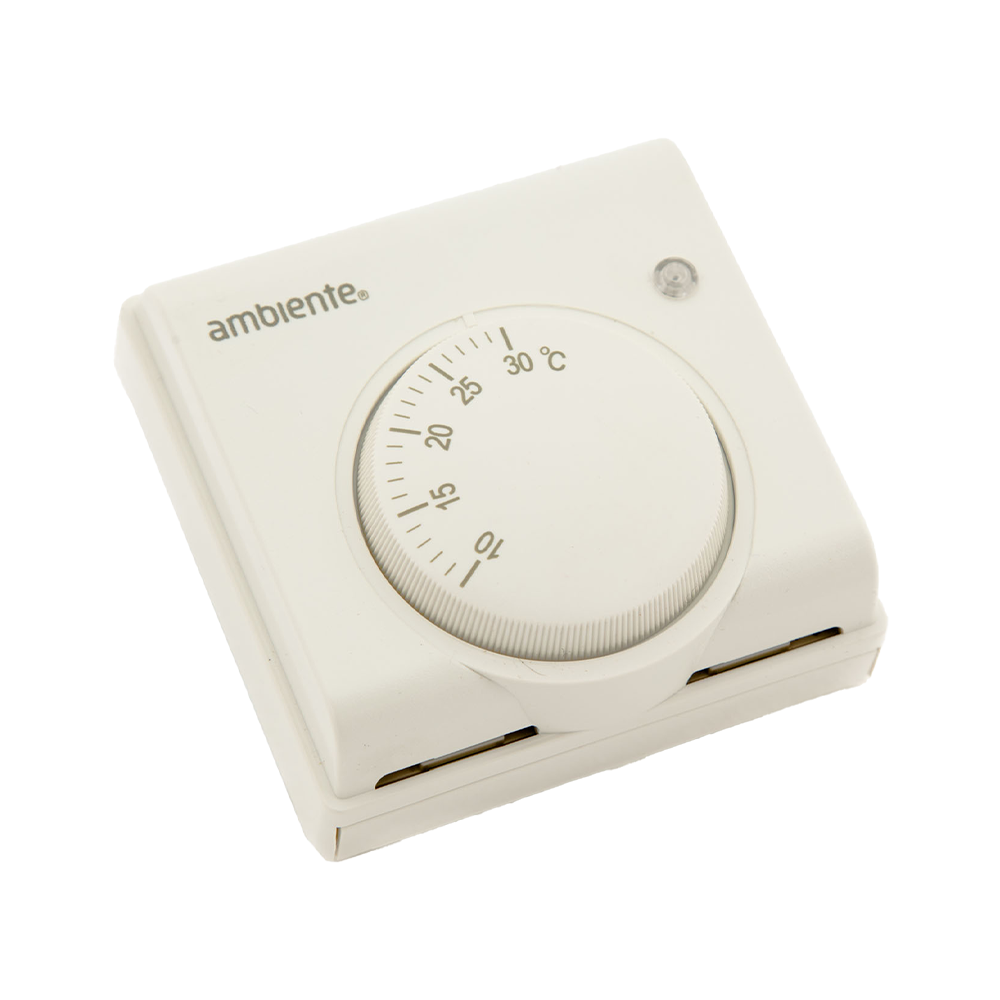

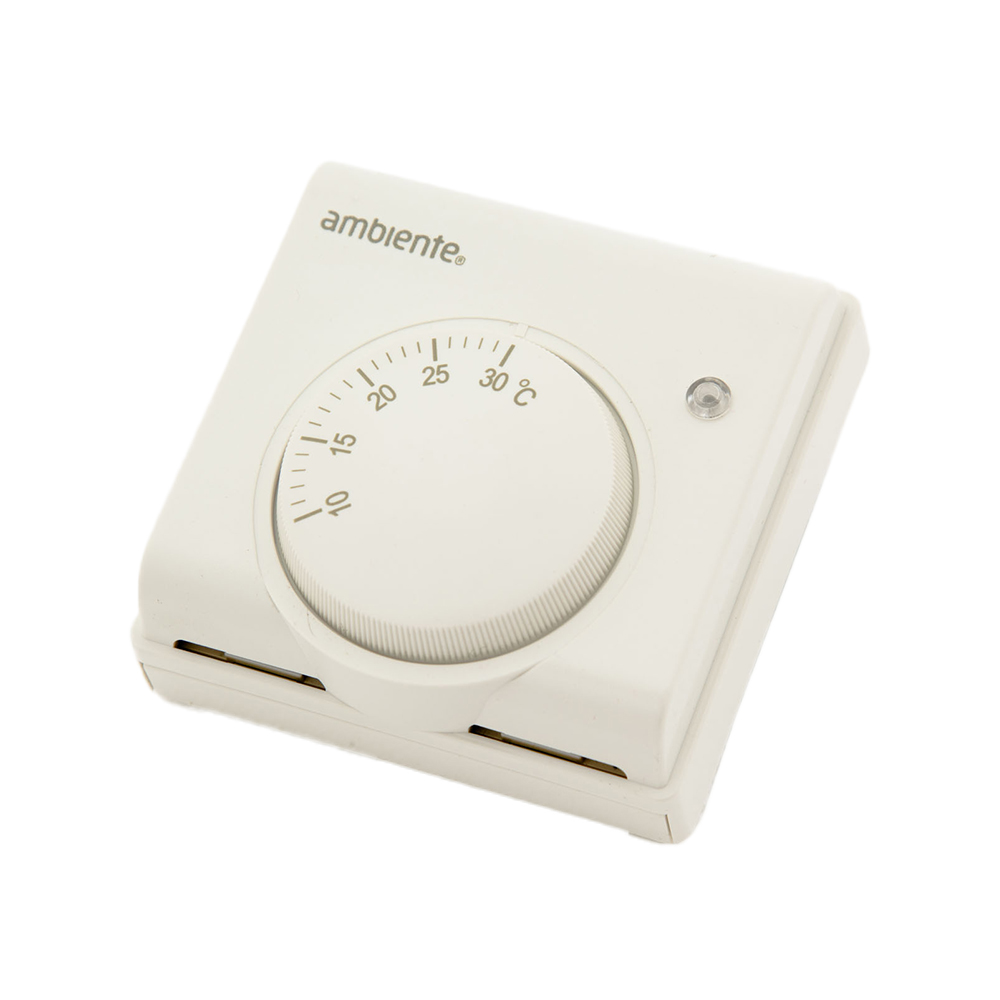

Standard Dial Thermostat 230V

Replacement Dial Thermostat – 230v, with indicator lamp – lamp lit when calling for heat.

Terminals are wired as per below:

1 = Perm live

3 = Switch live

5 = Neutral

Link from 3 to 6
